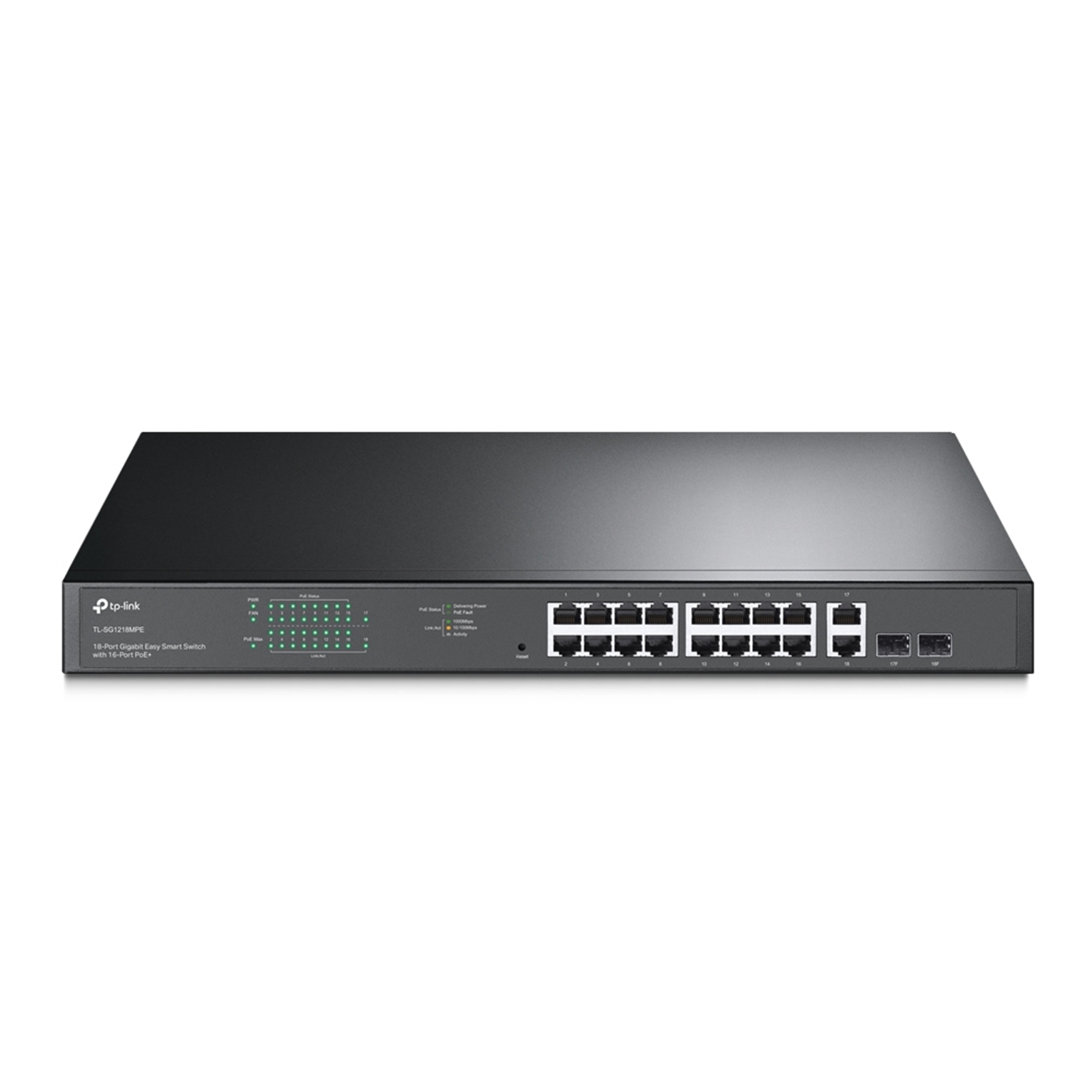

Are you looking for a reliable and high-performance PoE+ switch to power and connect your network devices effortlessly? Look no further than the TL-SG1218MPE, an exceptional Power over Ethernet (PoE) switch designed to cater to your networking needs. With cutting-edge features and seamless power delivery, this switch sets new standards for efficiency and connectivity.
Powerful PoE+ Capabilities:
The TL-SG1218MPE is equipped with 16 Gigabit Ethernet ports and 2 SFP slots, of which 8 ports support PoE+ (802.3at/af) with a total power budget of 192W. This allows you to easily deploy PoE-enabled devices like IP cameras, wireless access points, and VoIP phones without the need for additional power sources.
Seamless Network Performance:
With its Gigabit Ethernet ports and non-blocking switching architecture, the TL-SG1218MPE ensures high-speed data transmission, low latency, and smooth network performance, making it ideal for bandwidth-intensive tasks and data-intensive applications.
Smart Energy-Efficient Design:
The TL-SG1218MPE features an energy-efficient design with IEEE 802.3az Energy Efficient Ethernet (EEE) and the innovative Green Technology, which automatically adjusts power consumption based on the link status and cable length, reducing energy costs and environmental impact.
Intuitive Web Management:
Take control of your network with ease using the intuitive web management interface. Configure VLANs, monitor network traffic, set up QoS, and manage PoE settings effortlessly, all from a user-friendly interface.
Advanced Security Features:
Ensure the security and integrity of your network with the TL-SG1218MPE’s advanced security features. Implement Access Control Lists (ACLs) to restrict unauthorized access, protect against Denial of Service (DoS) attacks, and secure sensitive data.
Rugged and Durable Design:
Built to last, the TL-SG1218MPE is housed in a sturdy metal casing, providing excellent durability and protection for your network equipment. Its fanless design ensures silent operation, making it suitable for quiet environments.
Easy Installation and Plug-and-Play Setup:
Get your network up and running quickly with the TL-SG1218MPE’s plug-and-play setup. No configuration is required for most installations, and the switch is compatible with a wide range of devices and network protocols.
Versatile Rack-Mountable Design:
The TL-SG1218MPE’s rack-mountable design allows for flexible installation in server rooms, data centers, or network closets, saving valuable space and providing centralized network management.
Specifications
HARDWARE FEATURES
Standards and Protocols
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
Interface
16 x 10/100/1000 Mbps PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
2 x 10/100/1000 Mbps non-PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
2 x Combo Gigabit SFP Ports
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
1000BASE-X MMF, SMF
Fan Quantity
2 Fans
Physical Security Lock
Yes
Power Supply
100–240V AC, 50/60 Hz
PoE+ Ports(RJ45)
Standard: 802.3at/802.3af compliant
PoE+ Ports: Ports 1–16
Power Supply: 250 W
Dimensions ( W x D x H )
17.3 x 7.1 x 1.7 in (440 x 180 x 44 mm)
Mounting
Rack Mountable
Max Power Consumption
21.4 W (220/50Hz. no PD connected)
296.3 W (220/50Hz. with 250 W PD connected)
Max Heat Dissipation
72.97 BTU/h (no PD connected)
1010.38 BTU/h (with 250 W PD connected)
PERFORMANCE
Switching Capacity
36 Gbps
Packet Forwarding Rate
26.78 Mbps
MAC Address Table
8K
Packet Buffer Memory
4.1 Mbit
Jumbo Frame
10 KB
SOFTWARE FEATURES
Quality of Service
Support Port-based 802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features
IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
PoE Auto Recovery
VLAN
Support up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Management
Web-based GUI
Easy Smart Configuration Utility
Transmission Method
Store-And-Forward
OTHERS
Certification
CE, FCC, RoHS
Package Contents
TL-SG1218MPE
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet
Environment
Operating Temperature: 0–50 °C (32–122 °F)
Storage Temperature: -40–70 °C (-40–158 °F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
