What This Product Does
The TL-SM311 series Fiber Module Cards are introduced to extend transferring distance. Installed in our managed/smart switches, they can extend the distance to even tens of kilometers, which basically satisfy the distance requirement of LAN. Users can choose the fiber modules according to specific demands.
Specifications
PACKAGE CONTENTS
Package Contents:

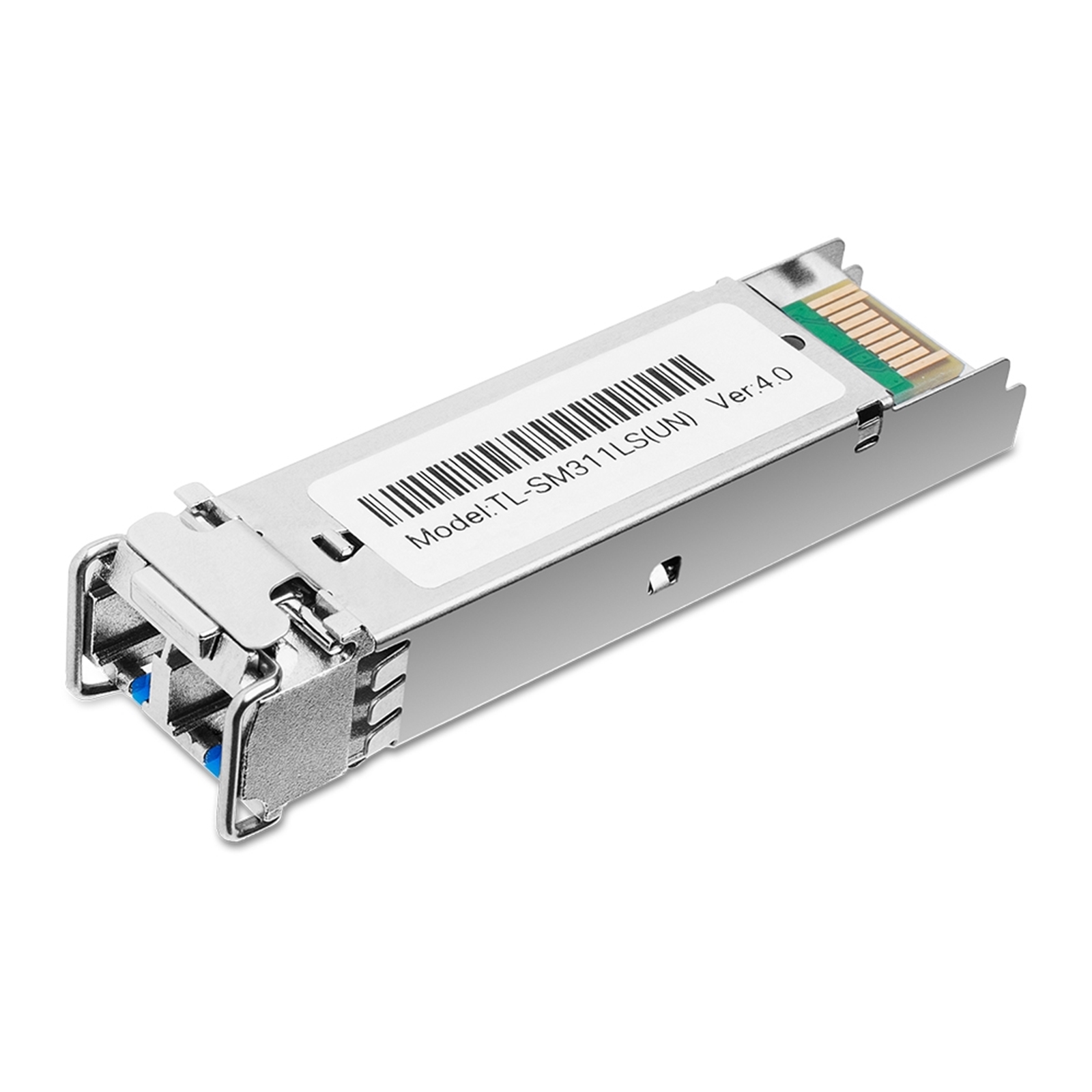

• SFP Module TL-SM311LS
• Installation Guide
HARDWARE FEATURES
DDM:
Yes
SFP-MSA:
Yes
Hot Swappable:
Yes
MEDIA CONVERTER & MODULE
Standards and Protocols:
IEEE 802.3z
Wave Length:
1310 nm
Dimensions (W*D*H):
2.2*0.6*0.5 in (55.4*14.6*12.9 mm)
Power Supply:
3.3 V
Safety & Emission:
FCC, CE
Cable:
Single-Mode Fiber
Fiber Type:
9/125 µm Single-Mode
Max. Cable Length:
20 KM
Data Rate:
1.25 Gbps
Port Type:
LC Duplex
