What This Product Does

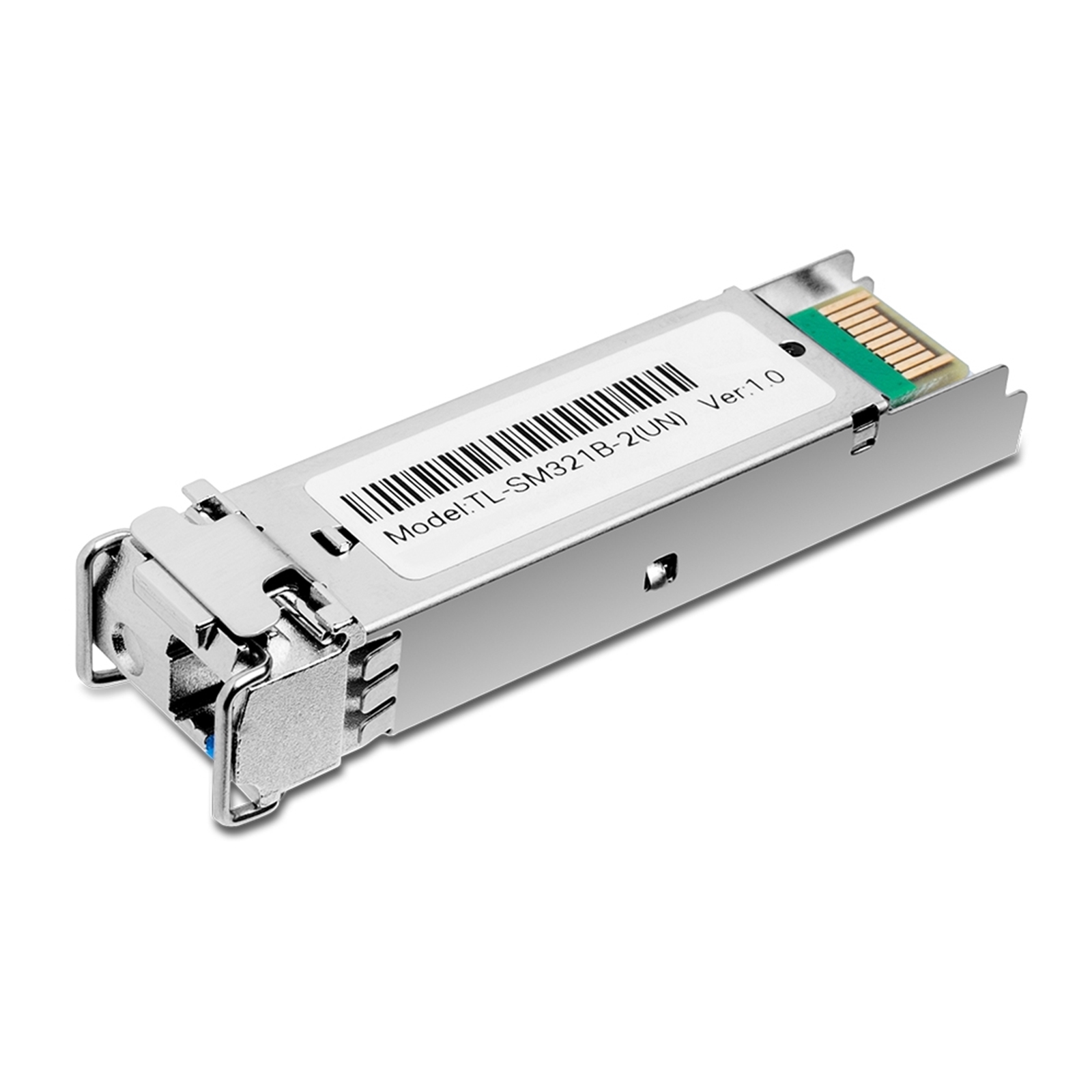

TP-LINKs TL-SM321B-2 and TL-SM321A-2 is designed to work in a pair to create an on-site gigabit fiber communication up to 2km (2,000 meters). With one single-mode fiber, the pair of modules can create a full-duplex gigabit path between your switches, storage devices, and server.
The TP-LINKs TL-SM321B-2 is developed in accordance with the Small Form Pluggable Multi-Source Agreement (SFP-MSA). As a WDM Bi-Directional optical transceiver, TL-SM321B-2 uses an integrated LC Bi-Directional optical interface connector and the data link is up to 2 km in 9/125 µm SMF (Single-Mode Fiber).
Also, TL-SM321B-2 incorporates the Digital Diagnostic Monitoring (DDM) feature which is compatible with SFF-8472. DDM supports real-time monitoring of the transceiver, and shows parameters including the transceiver current which transmits/receives optical power and operating temperature.
TP-Link’s TL-SM321B-2 is used for short-and medium distance fiber network in practice, and it provides fast and stable gigabit fiber connection for switches, routers, servers, etc.
Specifications
PACKAGE CONTENTS
Package Contents:
• SFP Module TL-SM321B-2
• Installation Guide
HARDWARE FEATURES
DDM:
Yes
SFP-MSA:
Yes
Hot Swappable:
Yes
MEDIA CONVERTER & MODULE
Standards and Protocols:
IEEE 802.3z, TCP/IP
Wave Length:
Tx: 1310 nm
Rx: 1550 nm
Dimensions (W*D*H):
2.2*0.6*0.5 in (55.4*14.6*12.9 mm)
Power Supply:
3.3V
Safety & Emission:
FCC, CE
Cable:
Single-Mode Fiber
Fiber Type:
9/125 µm Single-Mode
Max. Cable Length:
2 KM
Data Rate:
1.25 Gbps
Port Type:
LC Simplex
