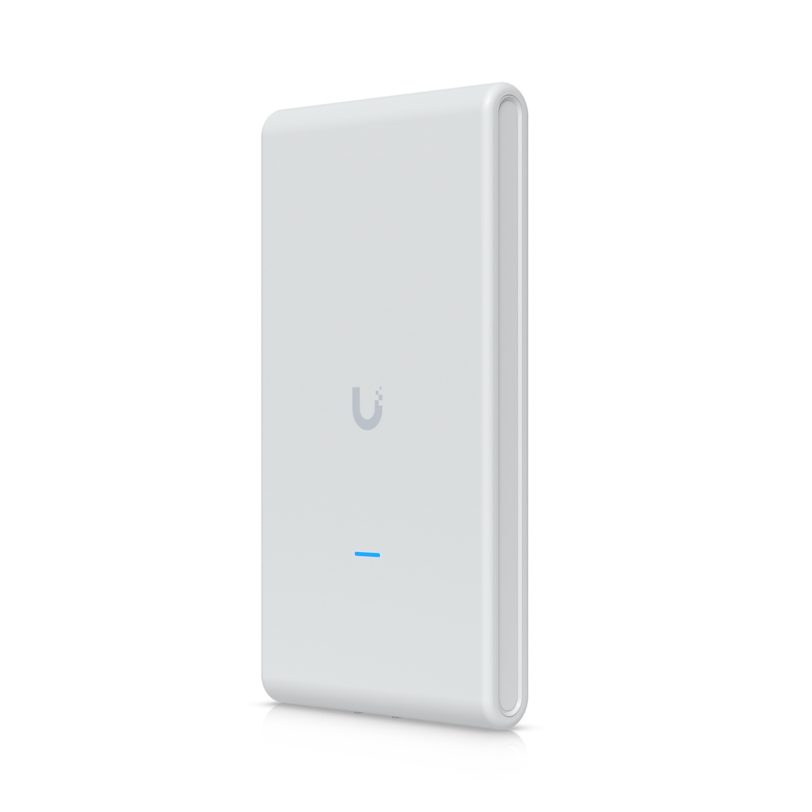

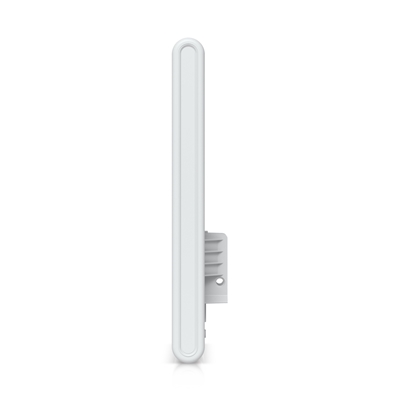

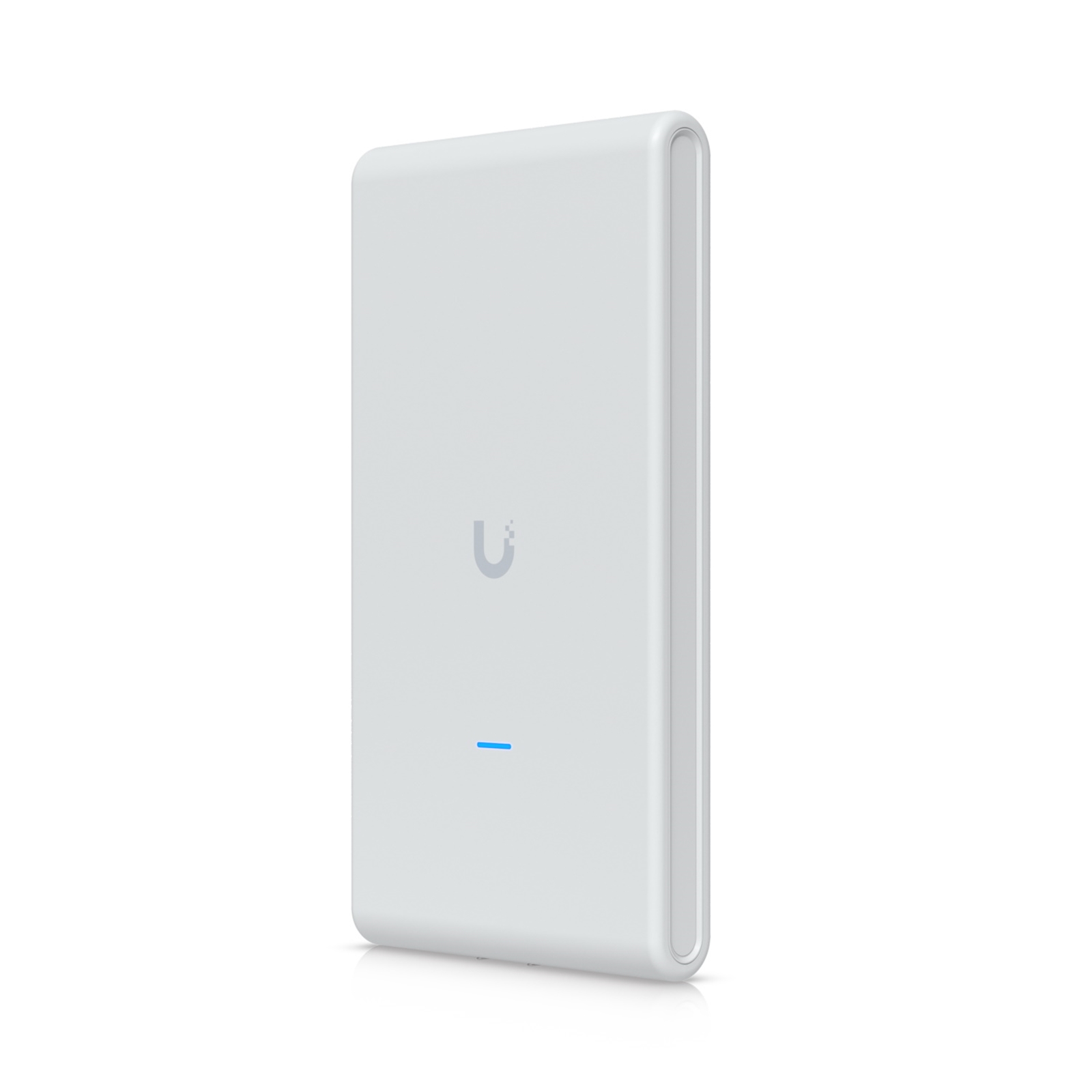

Indoor/outdoor WiFi 6 AP with 4 spatial streams, an integrated super antenna, and a gigabit passthrough port.
WiFi 6
4 spatial streams
185 m² (2,000 ft²) coverage with the integrated omnidirectional super antenna
350+ connected devices
Powered using PoE
GbE uplink with (1) GbE passthrough port

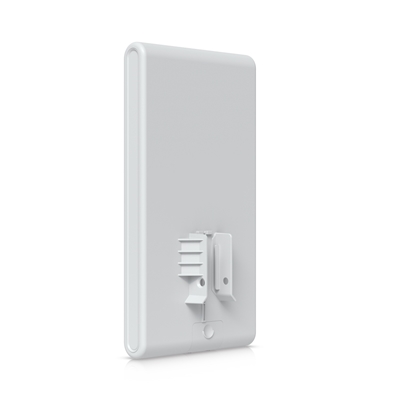

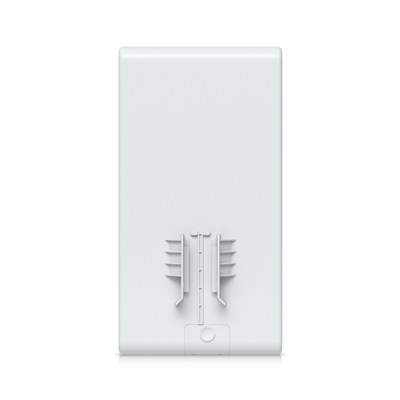

Versatile wall and pole mounting
Weatherproof (outdoor exposed)
Dimensions
343.2 x 181.2 x 60.2 mm (13.5 x 7.1 x 2.4″)
Weight
819 g (1.8 lb)
Enclosure Material
UV-stabilized polycarbonate
Mount Material
Aluminum alloy, steel
Pole Diameter
1~2.5″ on pipe outer diameter
Weatherproofing
IPX6
Networking Interface

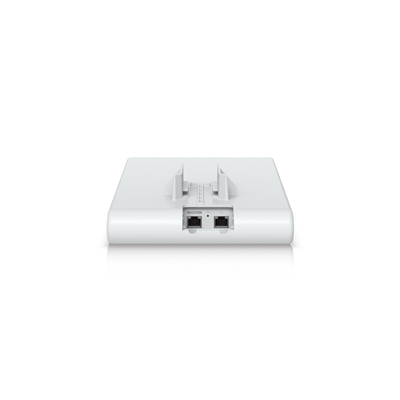

(2) GbE RJ45 ports
Management Interface
Ethernet
WiFi
Power Method
POE
Power Supply
UniFi PoE switch
48V, 0.5A PoE adapter (Included)
Supported Voltage Range
42.5—57V DC
Max. Power Consumption
9W
Max. TX Power
2.4GHz : 22 dBm
5GHz : 27 dBm
MIMO
2.4GHz : 2 x 2 (DL/UL MU MIMO)
5GHz : 2 x 2 (DL/UL MU MIMO)
Max. Data Rate
2.4GHz : 573.5 Mbps (BW40)
5GHz : 2.4 Gbps (BW160)
Antenna Gain
2.4GHz : 8 dBi
5GHz : 8 dBi
LEDs
White/Blue
Button
Factory Reset
Mounting
Wall, pole (Included)
WiFi Standards
802.11a/b/g/n/ac/ax (WiFi 6)
Wireless Security
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID
8 Per Radio
VLAN
802.1Q
Advanced QoS
Per-user rate limiting
Guest Traffic Isolation
Supported
Concurrent Clients
350+
