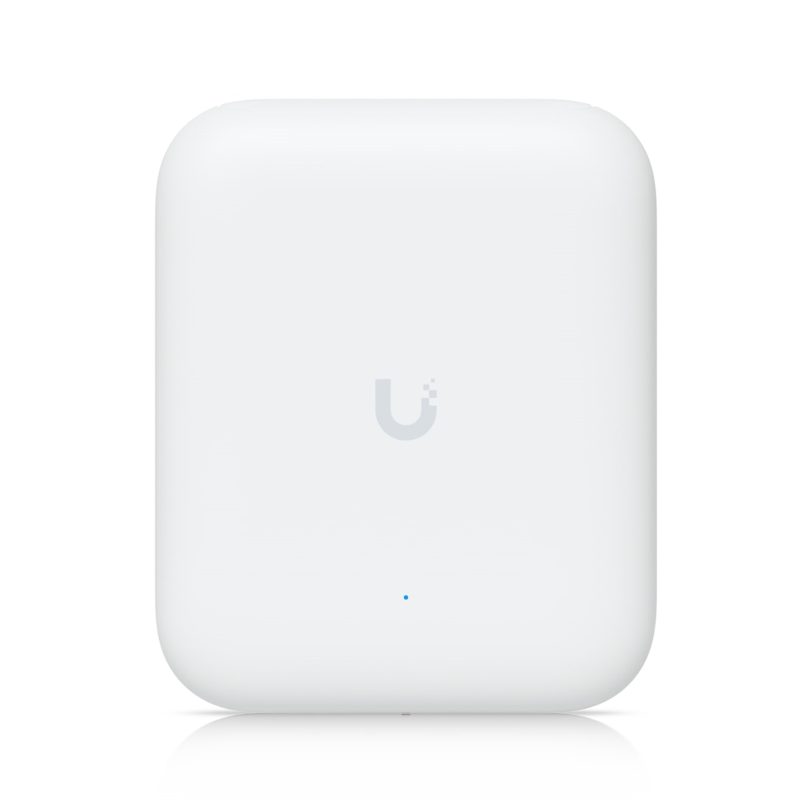

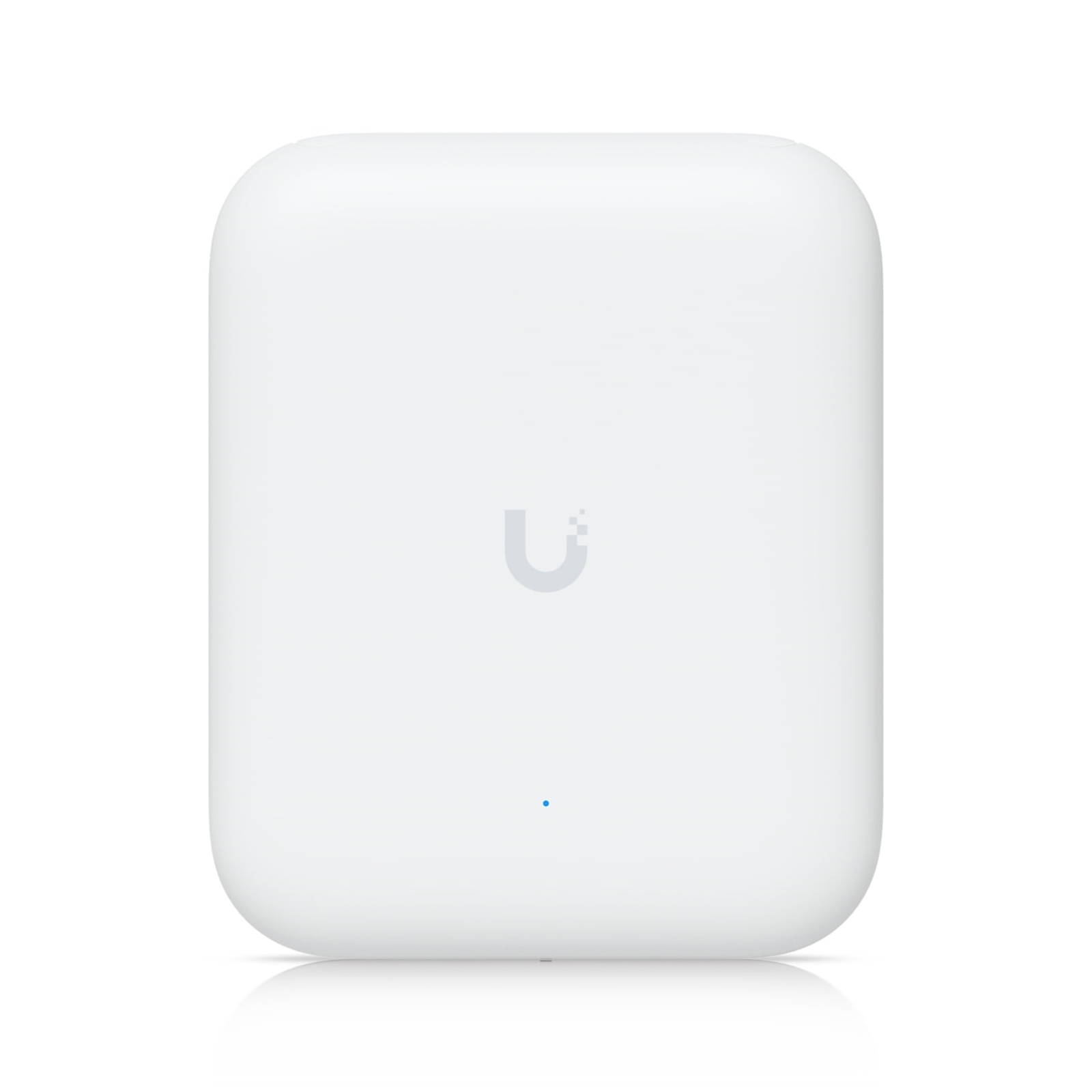

Ubiquiti U7 Outdoor WiFi 7 Access Point
Key Features
WiFi 7
4 spatial streams
465 m² (5,000 ft²) open space coverage
Integrated directional super antenna
Software-adjustable antenna beamwidth
200+ connected devices
Powered using PoE+
2.5 GbE uplink
Versatile wall and pole mounting
IPX6 Weatherproof (outdoor exposed)
Introducing the Ubiquiti UniFi U7-Outdoor, the ultimate solution for reliable outdoor WiFi 7 connectivity. Designed to withstand the elements, this access point features a durable, weather-resistant enclosure and delivers tri-band performance across the 2.4 GHz, 5 GHz, and 6 GHz bands.
The UniFi U7-Outdoor ensures seamless, high-speed connectivity in outdoor environments. Advanced technologies like OFDMA and MU-MIMO enhance network efficiency, making it ideal for campuses, parks, and large outdoor events. Easy to install and manage, the U7-Outdoor is the perfect choice for extending your network outdoors.
Specifications
Mechanical
Dimensions
170 x 208 x 54.5 mm (6.7 x 8.2 x 2.1″)
Weight
1.2 kg (2.6 lb)
Enclosure Material
UV-stabilized polycarbonate, aluminum alloy
Mount Material
Polycarbonate, SGCC steel
Pole Mount Diameter
25–60 mm (1–2.36″) on pipe outer diameter
Wind Survivability#
74.6 N at 200 km/h (16.8 lbf at 125 mph)
Weatherproofing
IPX6
Hardware
Networking Interface
(1) 1/2.5 GbE RJ45 port
Management Interface
Ethernet
Power method
PoE+
Power Supply
UniFi PoE Switch
Supported Voltage Range
42.5—57V DC
Max. Power Consumption
19W
Max. TX Power
2.4 GHz – 23 dBm
5 GHz – 26 dBm
6 GHz – No
MIMO
2.4 GHz – 2 x 2
5 GHz – 2 x 2
6 GHz – No
Throughput Rate
2.4 GHz – 688 Mbps
5 GHz – 4324 Mbps
Antenna Gain
2.4 GHz – Directional internal: 8 dBi / External omni: 3 dBi
5 GHz – Directional internal: 12.5 dBi / External omni: 4 dBi
6 GHz – No
Antenna Beamwidth
2.4 GHz – 90 degrees
5 GHz – 45 degrees
6 GHz – No
Antennas
(1) Directional internal antenna
(2) External omni antennas
(2) RP-SMA connectors for external antenna
LEDs
(1) Power: white/blue
(4) Mesh signal: blue
Button
Factory reset
Mounting
Wall, ceiling, pole (Included)
Ambient Operating Temperature
-30 to 60° C (-22 to 140° F)
Ambient Operating Humidity
5 to 95% noncondensing
Certifications
CE, FCC, IC
Software
WiFi Standards
802.11a/b/g/n/ac/ax/be
Wireless Security
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
BSSID
8 per radio
VLAN
802.1Q
Advanced QoS
Per-user rate limiting
Guest Traffic Isolation
Supported
Concurrent Clients
200+
Supported Data Rates
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
1, 2, 5.5, 11 Mbps
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n
6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6)
7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160)
802.11be (WiFi 7)
7.3 Mbps to 4.3 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240)
Box Contents
1 x U7-Pro-Wall
2 x External antennas
1 x Wall plate template level
1 x Wall plate mount
1 x Multipurpose mount
2 x Jubilee clips
All mounting hardware
