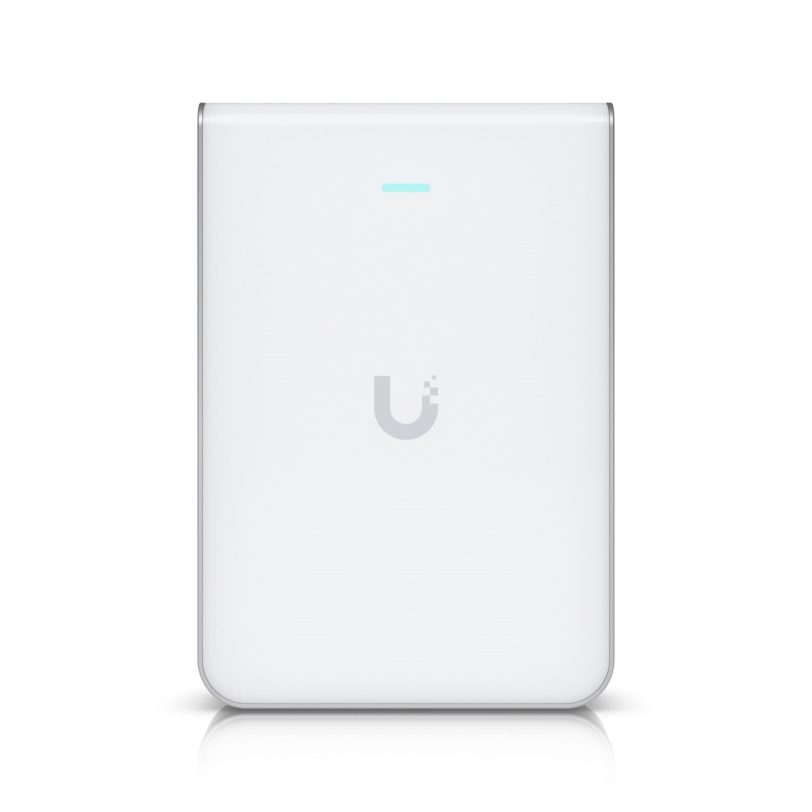

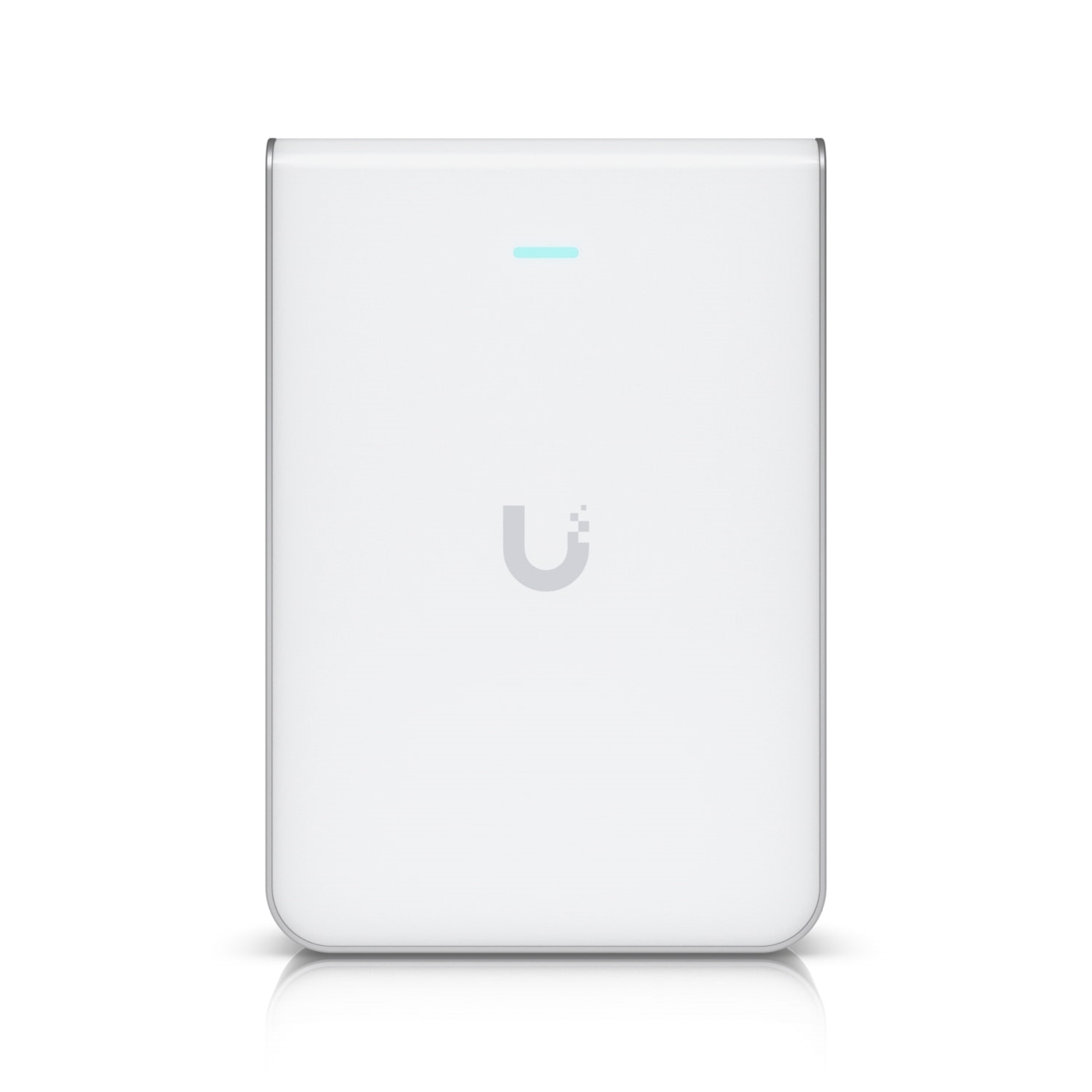

Ubiquiti UniFi U7 Pro Wall WiFi 7 Access Point
Key Features
WiFi 7 with 6 GHz support
802.11a/b/g/n/ac/ax/be
6 spatial streams
140 m² (1,500 ft²) coverage
300+ connected devices
Powered using PoE+
2.5 GbE uplink
Versatile deployment
Introducing the Ubiquiti UniFi U7-Pro-Wall, a high-performance wall-mounted WiFi 7 access point designed to deliver exceptional wireless coverage and speed.
This sleek, compact device is perfect for high-density environments, offering tri-band connectivity with support for 2.4 GHz, 5 GHz, and the new 6 GHz band. With a maximum aggregate throughput of 10.2 Gbps, the U7-Pro-Wall ensures seamless connectivity for all your devices.
UniFi U7-Pro-Wall features advanced technologies such as OFDMA and MU-MIMO, enhancing network efficiency and performance. U7-Pro-Wall includes advanced security protocols to protect your network and is deal for both enterprise and residential deployments, the U7-Pro-Wall combines aesthetic design with powerful performance.
Specifications
Technical Specifications
Mechanical
Dimensions
150 x 103 x 36 mm (5.9 x 4.1 x 1.4″)
Weight
580 g (1.3 lb)
Enclosure Material
Polycarbonate, aluminum
Mount Material
Aluminum
Hardware
Networking Interface

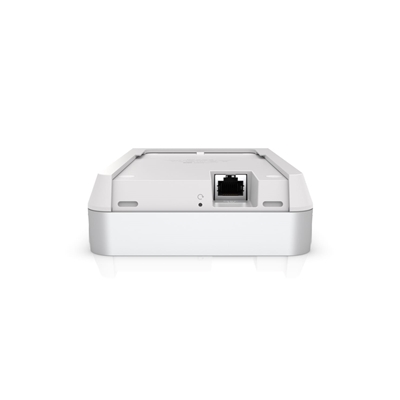

(1) 1/2.5 GbE RJ45 port
Management Interface
Ethernet
Power Method
PoE+
Power Supply
UniFi PoE switch
Supported Voltage Range
44—57V DC
Max. Power Consumption
22W
Max. TX Power
2.4 GHz – 22 dBm
5 GHz – 26 dBm
6 GHz – 23 dBm
MIMO
2.4 GHz – 2 x 2
5 GHz – 2 x 2
6 GHz – 2 x 2
Throughput Rate
2.4 GHz – 688 Mbps
5 GHz – 4324 Mbps
6 GHz – 5764 Mbps
Antenna Gain
2.4 GHz – 4 dBi
5 GHz – 5dBi
6 GHz – 6 dBi
LEDs
White/Blue
Button
Factory reset
Mounting
Wall (Included)
Table stand, flush mount (Optional)
Ambient Operating Temperature
-30 to 60° C (-22 to 140° F)
Ambient Operating Humidity
5 to 95% noncondensing
Certifications
CE, FCC, IC
Software
WiFi Standards
802.11a/b/g/n/ac/ax/be
Wireless Security
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
BSSID
8 per radio
VLAN
802.1Q
Advanced QoS
Per-user rate limiting
Guest Traffic Isolation
Supported
Concurrent Clients
300+
Supported Data Rates
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
1, 2, 5.5, 11 Mbps
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n
6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6/6E)
7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160)
802.11be (WiFi 7)
7.3 Mbps to 5.7 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240/320)
Application Requirements
UniFi Network
Version 8.1 and later
UniFi OS
Version 3.2 and later
Box Contents
1 x U7-Pro-Wall access point
1 x Mounting plate template level

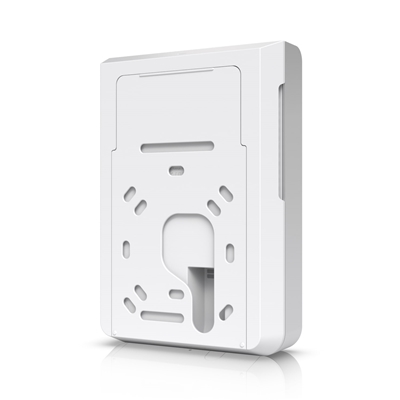

1 x Wall mount plate
All mounting hardware
