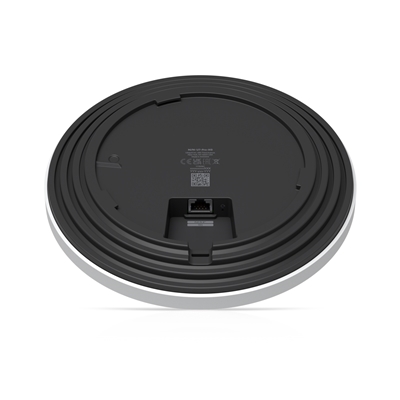

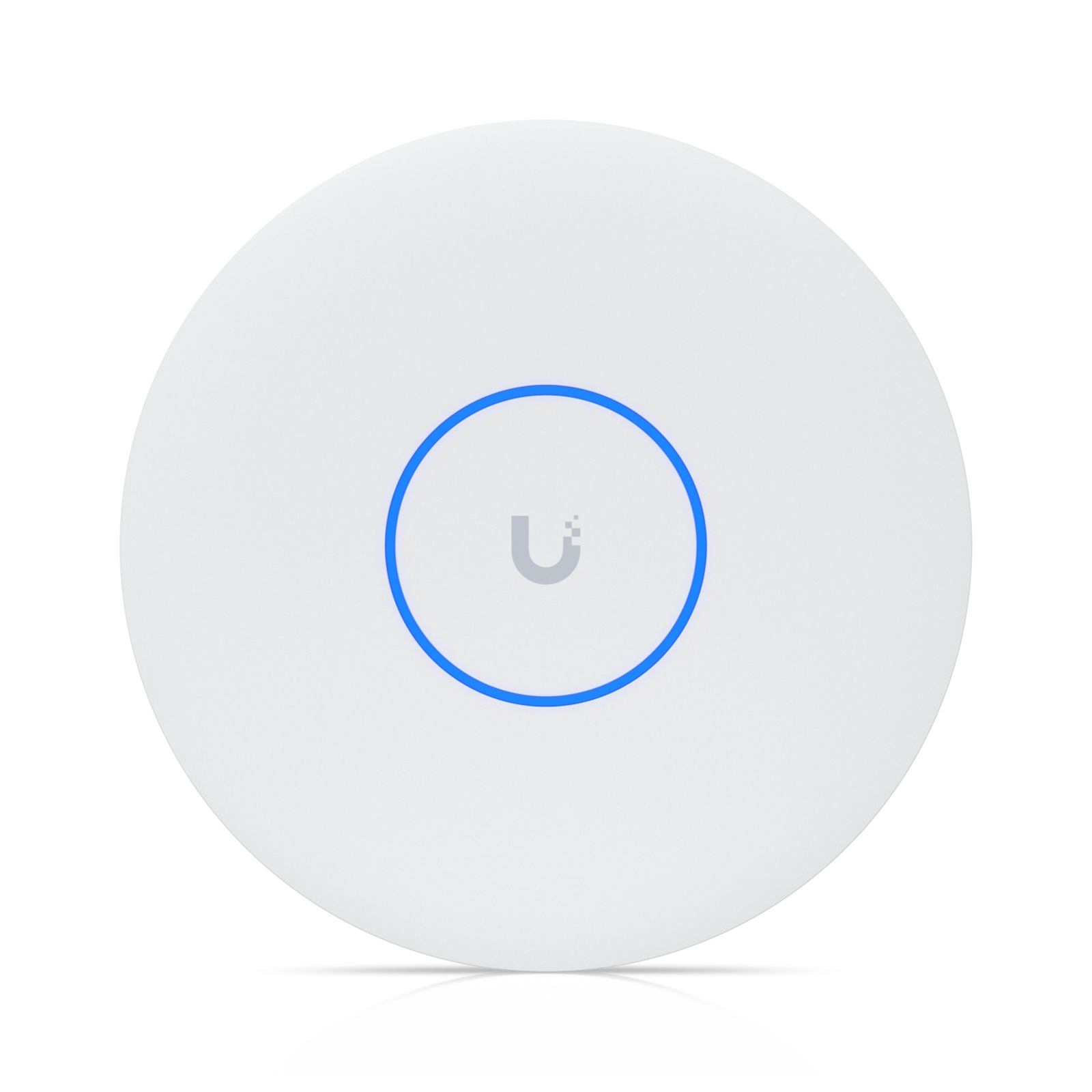

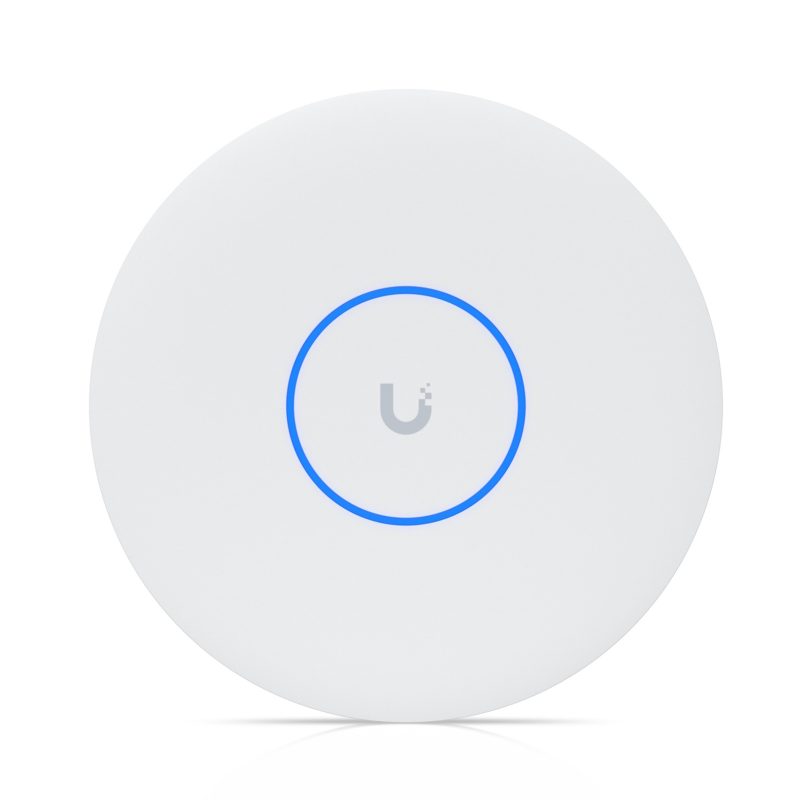

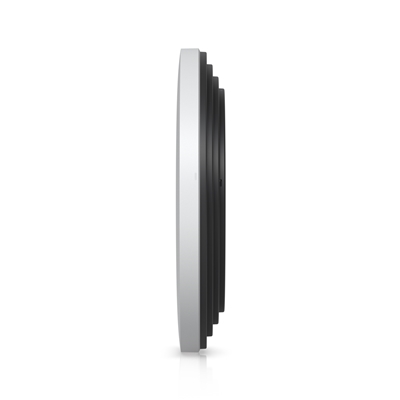

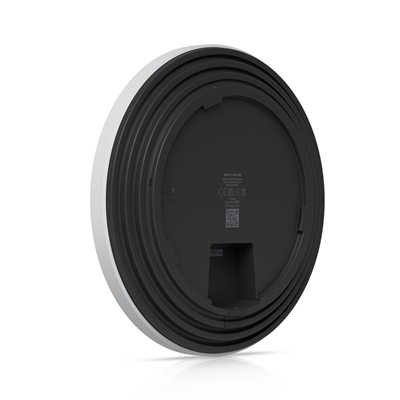

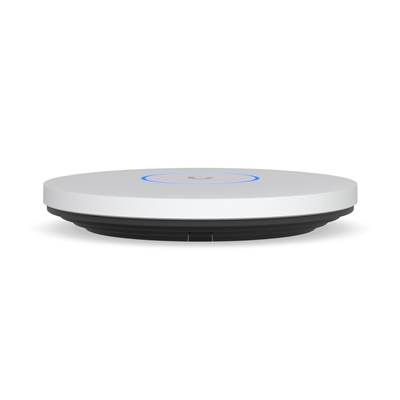

Ceiling-mounted 6-stream WiFi 7 AP with 10/5/2.5/1 GbE support.
WiFi 7 with 6 GHz support
6 spatial streams
140 m2 (1,500 ft2) coverage
300+ connected devices
Powered using PoE+
10 GbE uplink
Dimensions
d206 x 32.5 mm
(d8.1 x 1.3″)
WiFi Standard
WiFi 7
Spatial Streams
6
Coverage Area
140 m2 (1,500 ft2)
Max. Client Count
300+
Uplink
10 GbE
Mounting
Ceiling, Wall
(Lite Mount Included)
Power Method
PoE+
MIMO
6 GHz
2 x 2 (DL/UL MU-MIMO)
5 GHz
2 x 2 (DL/UL MU-MIMO)
2.4 GHz
2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
6 GHz
5.8 Gbps (BW320)
5 GHz
4.3 Gbps (BW240)
2.4 GHz
688 Mbps (BW40)
Antenna Gain
6 GHz
6 dBi
5 GHz
5 dBi
2.4 GHz
4 dBi
Max. TX Power
6 GHz
24 dBm
5 GHz
26 dBm
2.4 GHz
23 dBm
Max. BSSIDs
8 per Radio
Supported Data Rates
802.11be (WiFi 7)
6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/320)
5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0 – MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
802.11ax (WiFi 6)
7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 1.7Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160)
802.11n
6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
Wireless Meshing
Yes
Band Steering
Yes
802.11v BSS Transition Management
Yes
802.11r Fast Roaming
Yes
802.11k Radio Resource Management (RRM)
Yes
Advanced Radio Management
Yes
Passpoint (Hotspot 2.0)
Yes
Captive Hotspot Portal
Yes
Private Pre-Shared Key (PPSK)
Yes
WiFi Speed Limiting
Yes
Client Device Isolation
Yes
WiFi Schedules
Yes
RADIUS over TLS (RadSec)
Yes
Max. Power Consumption
22W
Supported Voltage Range
42.5 – 57V DC
Networking Interface
(1) 10 GbE RJ45 port
Weight
750 g (1.7 lb)
Management
Ethernet
Enclosure Material
UV-stabilized polycarbonate, aluminum alloy
Mount Material
Stainless steel (SUS304), galvanized steel (SGCC)
LEDs
System
Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
Certifications
CE, FCC, IC
