60 GHz PtP link using 802.11ad with 5 GHz radio for backup. Ideal for high-throughput connectivity with a range of up to 500 m.
1.7+ Gbps bi-directional Plug and Play 60 GHz Bridge with 5 GHz Radio Redundancy, UniFi Controller Management, and range of up to 500 m
UniFi Building-to-Building Bridge is the ideal solution for short-range, high-throughput connectivity. Integration with the UniFi Controller makes bridging two networks seamless. As a pack of two radios, UniFi Building-to-Building Bridge contains everything you need to get up and running within minutes. Enjoy simple, easy-to-use gigabit connectivity anywhere.
Package Contents:

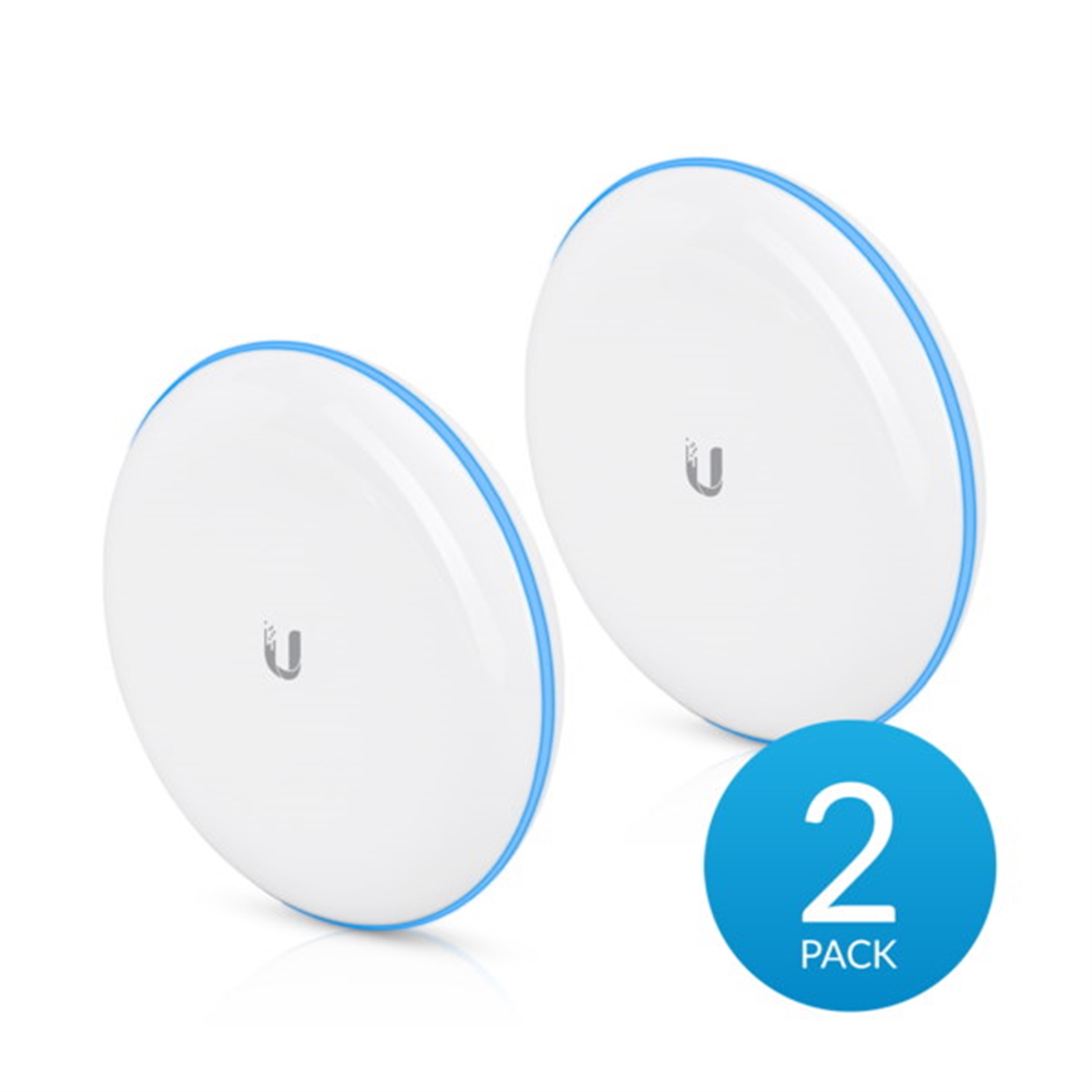

UniFi Building-to-Building Bridge (x2)
Ball joint mount (x2)
Lock ring (x2)
Metal strap (x2)
Gigabit PoE (48V, 0.32A) with mounting bracket (x2)
Power cord (x2)
Easily Adjust for Best Signal Using LED
Use the LED indicator to adjust the UBB position for optimal signal to the other bridge device.
Easy to Set Up
The UniFi Building-to-Building Bridge integration with the UniFi Controller makes bridging two networks seamless.
Specifications
Dimensions
140 x 140 x 90 mm (5.51 x 5.51 x 3.54″)
Weight
376 g (13.3 oz)
GPS
Yes
Max TX Power
25 dBm (5 GHz)
Interfaces

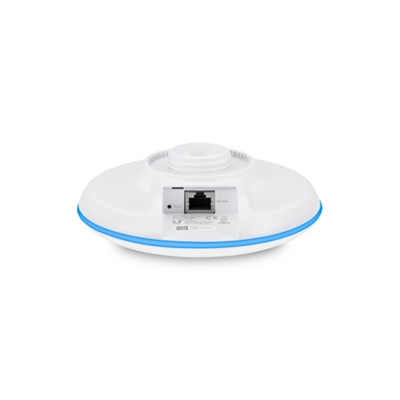

(1) 10/100/1000 Ethernet Port
Bluetooth
Enclosure
UV-Resistant Polycarbonate
Power Method
802.3af Supported
Passive Power over Ethernet (48V)
Power Supply
UniFi PoE Switch
48V, 0.32A Gigabit PoE Adapter (Included)
Max Power Consumption
11W
Wind Loading
56 N @ 200 km/h (12.6 lbf @ 125 mph)
Wind Survivability
200 km/h (125 mph)

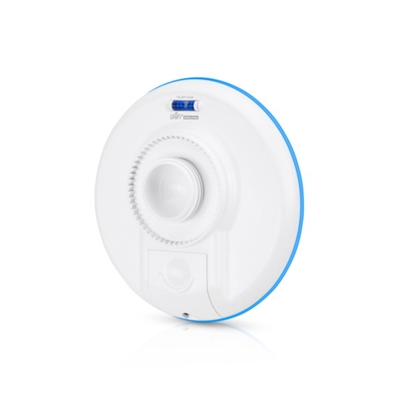

Mounting
Pole-Mount (Kit Included)
Wall-Mount (Not Included)
ESD/EMP Protection
24kV Contact/Air
Operating Temperature
-40 to 70 C (-40 to 158 F)
Operating Humidity
5 to 95% Noncondensing
Certifications
CE, FCC, IC
