All-in-one WiFi 6 router with a 3 Gbps aggregate throughput rate.

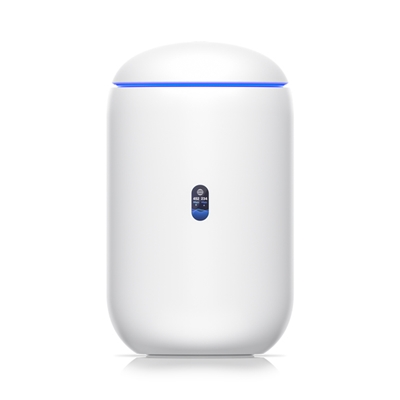

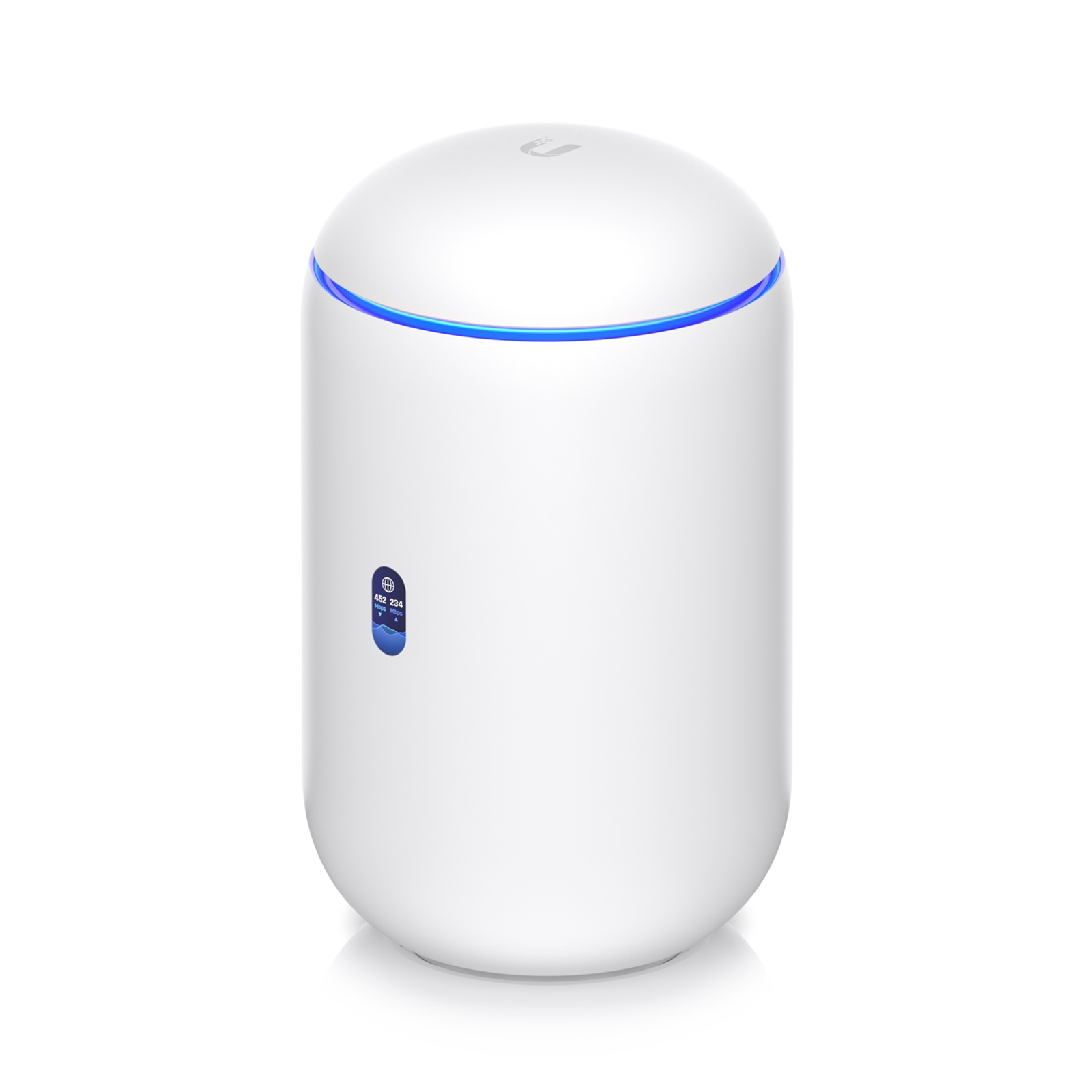

The Dream Router (UDR) is a next-generation WiFi 6 router that delivers unbeatable performance at an unmatched price. Featuring advanced 4×4 MU-MIMO and OFDMA technology, the UDR has an aggregate wireless throughput rate of up to 3 Gbps over its 2.4 and 5 GHz bands, ensuring quality connectivity for all of your devices. The UDR also has (5) GbE RJ45 ports, including two that supply PoE to compatible devices, and all of its connections can be conveniently monitored from the router’s LCM color screen. Designed to be a comprehensive, easy-to-use network hub, the UDR can be set up and configured in minutes via the UniFi Network web application or mobile app.
Features
Four-stream WiFi 6 technology
5 GHz band (4×4 MU-MIMO/OFDMA) with a 2.4 Gbps throughput rate
2.4 GHz band (4×4 MIMO) with a 600 Mbps throughput rate
128 GB of internal storage
(1) GbE RJ45 WAN port

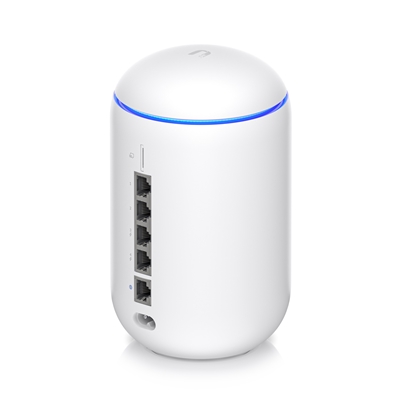

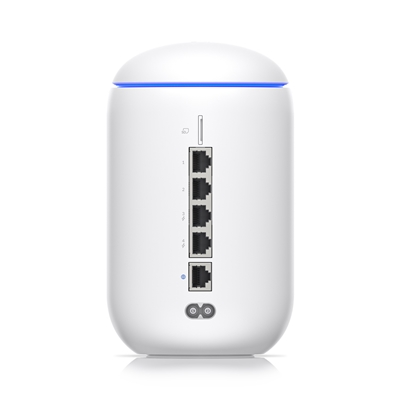

(4) LAN ports, including (2) PoE outputs
0.96″ LCM color screen for network and connection monitoring
Micro SD memory card expansion slot
Please note this device comes with an EU power plug.
Specifications
Dimensions
110 x 184.13 mm
Weight
1.15kg
Enclosure Material
Polycarbonate
Processor Specs
Dual-Core Cortex A53 at 1.35 GHz
System Memory
2GB
Expansion Slot
Micro SD memory card* (optional)
*Requires a memory card with at least 128 GB of storage.
Management Interface
Ethernet
Bluetooth
Networking Interfaces
(1) WAN: 1 GbE RJ45 port
(4) LAN: 1 GbE RJ45 ports
POE Interfaces
2x POE
LCD Display
Start-up animation: start-up in progress
Firmware update icon: firmware updating
Button
Factory Reset
LED
White/Blue
Power Method
Universal AC input, 100-240VAC, 1.1A Max, 50/60 Hz
Power Supply
AC/DC, Internal, 50W
POE Budget
32W
Max. PoE wattage per port by PSE
15.4W
