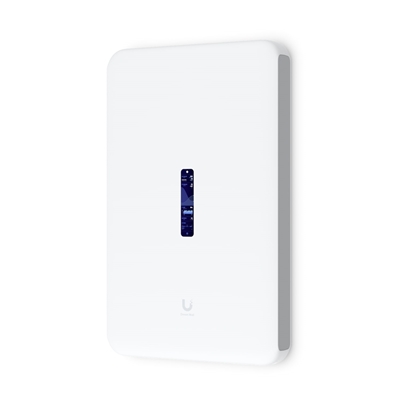

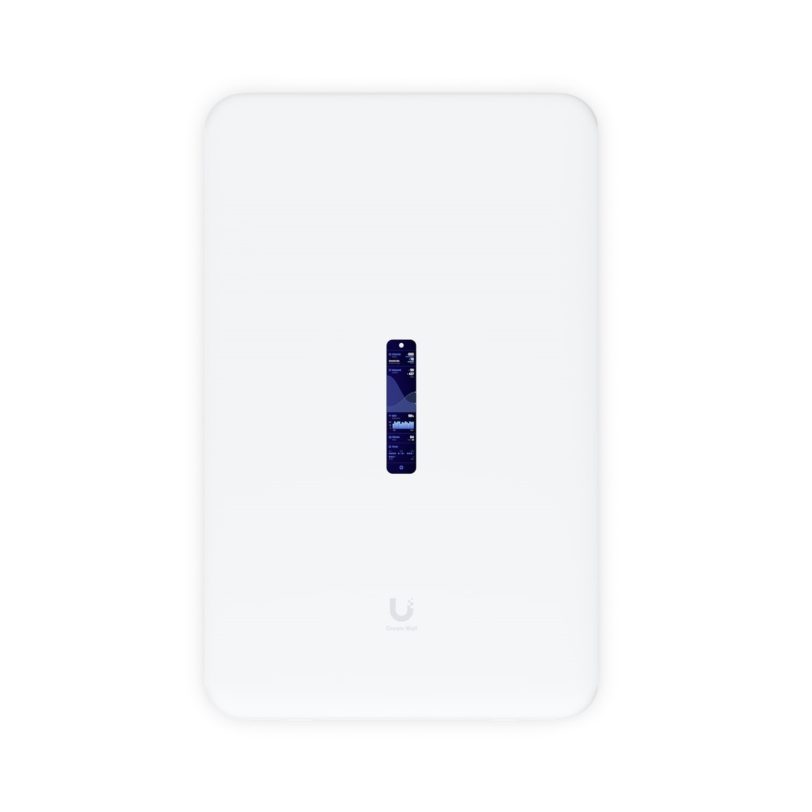

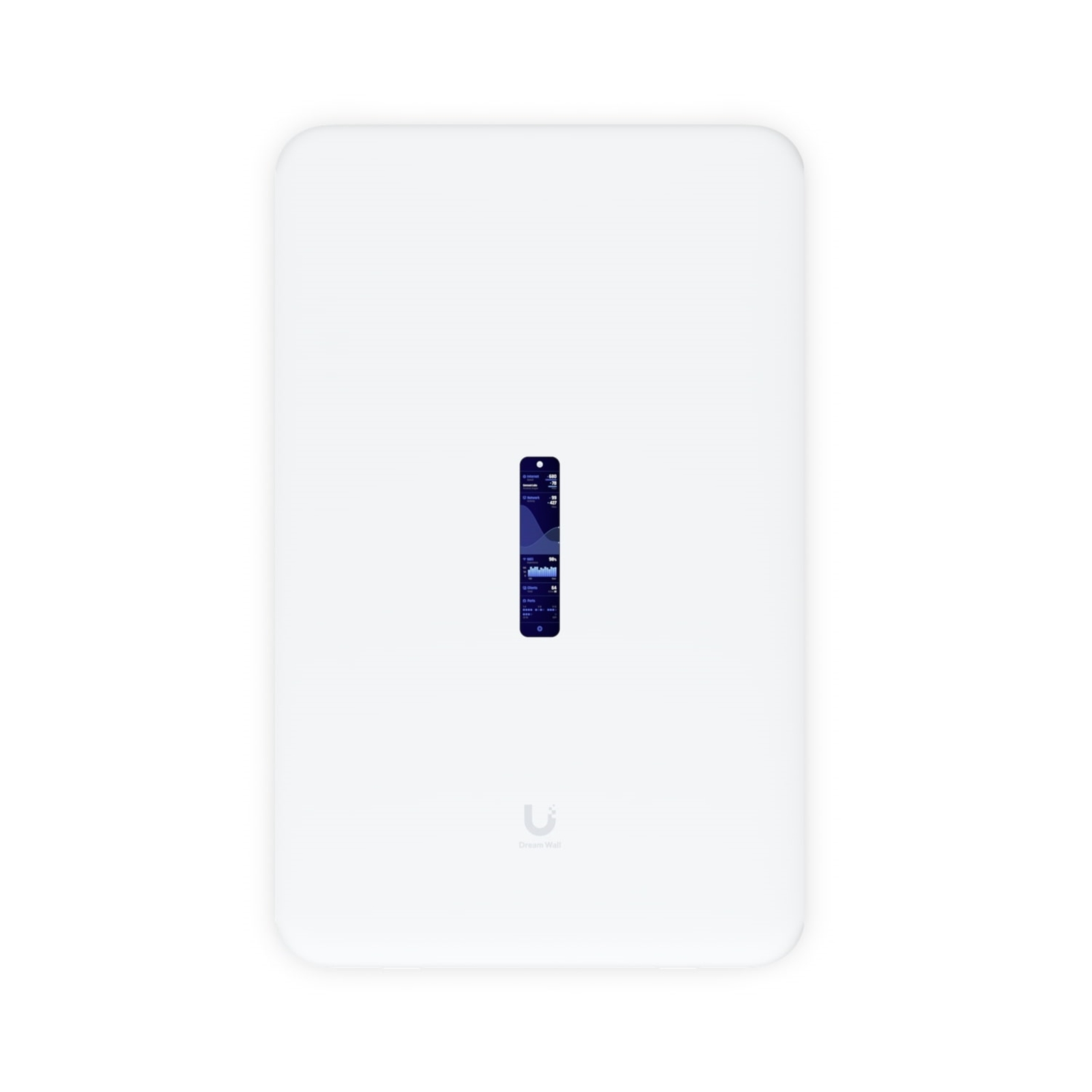

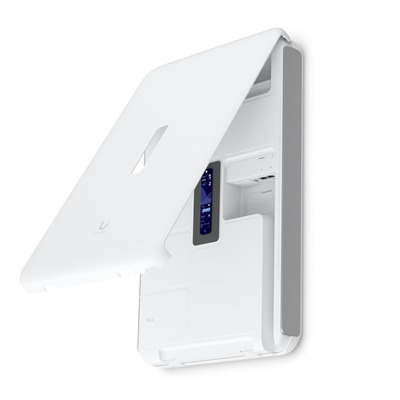

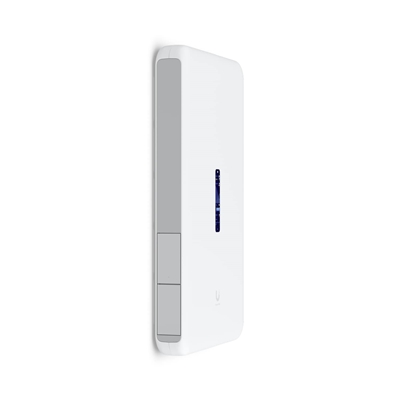

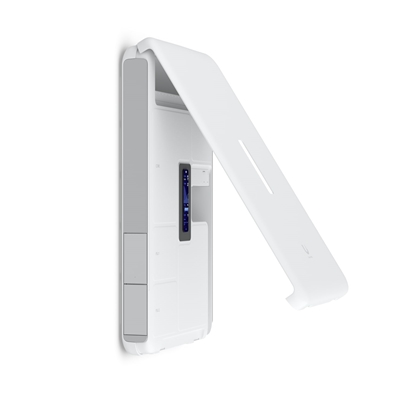

Ubiquiti UniFi Dream Wall (UDW)
The Ubiquiti UniFi Dream Wall is a wall-mounted UniFi OS Console with a security gateway, high-speed access point, network video recorder, and a PoE switch with a versatile networking interface. The Dream Wall iserves as a standalone, space-saving deployment hosting solution. Each of these feature-rich, next-gen consoles are equipped with a variety of multi-gigabit WAN/LAN ports to support high-speed connectivity, along with a wealth of GbE RJ45 ports that deliver PoE, PoE+, and PoE++ output.
Key Features
Wall-mountable UniFi OS Console
Dual-band WiFi radio with a 2.7 Gbps aggregate throughput rate (2.4 GHz: 300 Mbps / 5 GHz: 2.4 Gbps)
Dual WAN ports (10G SFP+ and 2.5GbE RJ45)
(1) 10G SFP+ LAN port
Dedicated Bluetooth management radio for streamlined configuration
1.3″ LCM colour touchscreen
Includes a wall mount, screw kits, and a power cord
128 GB integrated storage for full UniFi OS Application experience
Micro SD memory card expansion slot (card needs min 128 GB of storage)
Supports redundant power resources
(5) GbE RJ45 LAN ports
(12) GbE RJ45 ports, including (4) PoE, (4) PoE+, and (4) PoE++ LAN ports
Specifications
Mechanical
Weight and Dimensions
549 x 342 x 62 mm (21.6 x 13.5 x 2.4″)
10 kg (22 lb)
Enclosure Materials
Polycarbonate
Galvanized Steel
Aluminium Alloy
Mount Material
Stainless steel
Hardware
Processor Specs
Quad-Core ARM Cortex -A57 at 1.7 GHz
System Memory
4GB
DDR4
On-board Storage
16 GB eMMCIntegrated
128 GB SSD
Expansion Slot
Micro SD memory card (optional)
Requires a memory card with at least 128GB of storage.
Management Interface
Ethernet
Bluetooth
WiFi
Networking interfaces
(1) WAN: 2.5 GbE RJ45 port(17) LAN: 1 GbE RJ45 ports
SFP+ Interfaces
(1) WAN: 10G SFP+(1) LAN: 10G SFP+
PoE interfaces
(4) PoE IEEE 802.3af (pair A 1, 2+; 3, 6-)(4) PoE+ IEEE 802.3at (pair A 1, 2+; 3, 6-)(4) PoE++ IEEE 802.3bt(pair A 1, 2+; 3, 6-) (pair B 4, 5+; 7, 😎
LCM display
(1) 1.3″ touchscreen Start-up animation: start-up in progress Firmware update icon: rmware updating
Button
Factory-reset
Power Method
Universal AC input 100 to 240VAC, 7A Max, 50/60Hz
Power Supply
(2) Hot-Swappable AC/DC 550W PSU
Max Power Consumption
532W
Max PoE Wattage Per Port by PSE
PoE 802.3af: 15.4WPoE+ 802.3at: 30WPoE++ 802.3bt: 60W
Voltage Range
802.3af mode 44 to 57V
Voltage Range
802.3at/bt mode 50 to 57V
Mounting
Wall mount(included)
ESD/EMP Protection Air
8 kV contact 4 kV
Operating Temperature
-10 to 40° C (14 to 104° F)
Operating Humidity
5 – 95% noncondensing
Certifications
CE, FCC, IC
