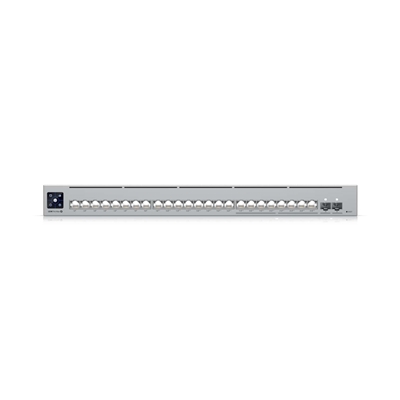

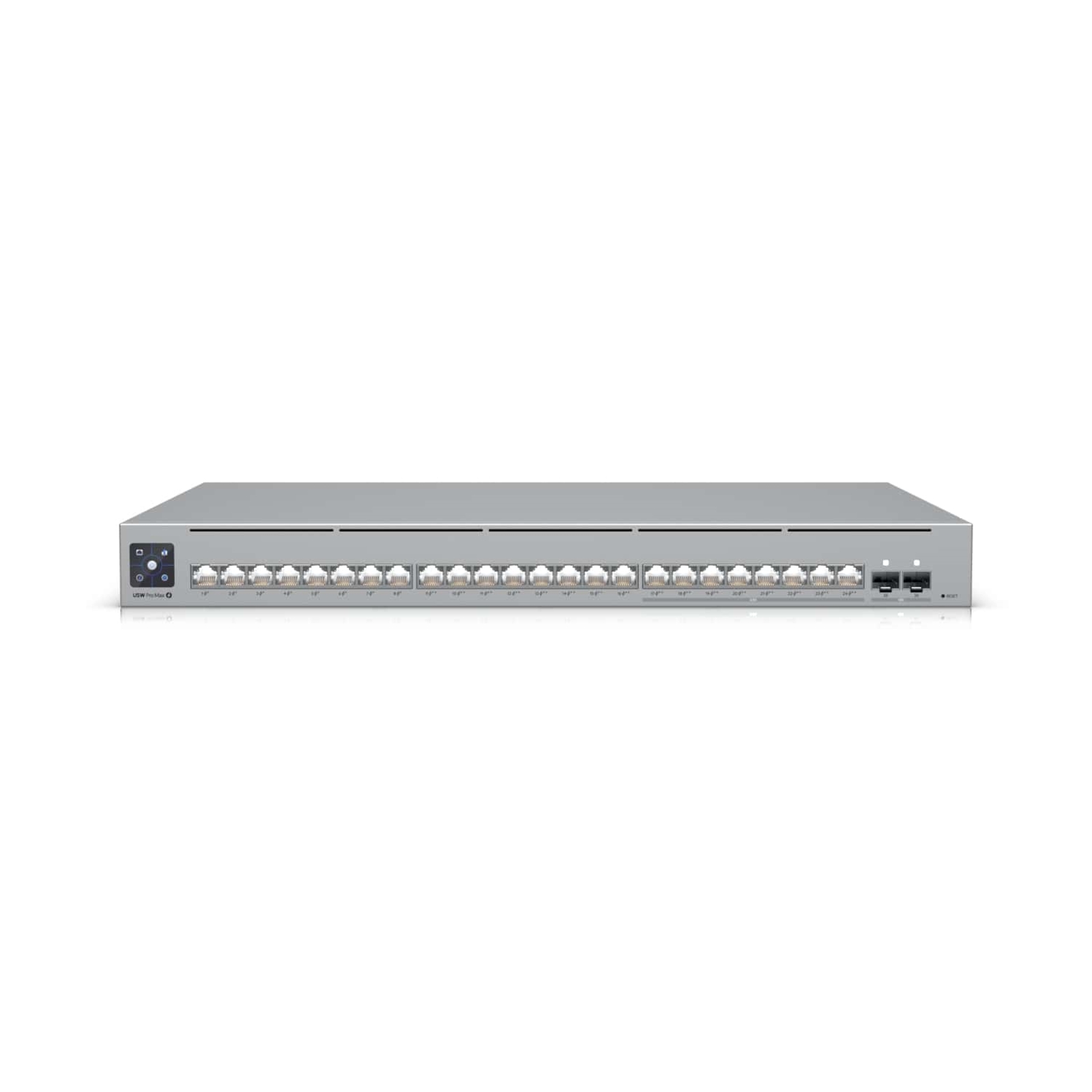

Ubiquiti UniFi USW-Pro-Max-24-POE Network Switch
y Features
24-port switch
8 x 2.5 GbE PoE++ ports
16 x GbE ports including (8) PoE+ and (8) PoE++
2 x 10G SFP+ ports
Layer 3
Etherlighting ports that illuminate
DC power backup ready
400W total PoE availability
The USW-Pro-Max-24-PoE is a cutting-edge Layer 3 Etherlighting switch, designed for high-power PoE++ output. This 24-port switch is an exceptional blend of performance and innovation, suitable for demanding network environments.
USW-Pro-Max-24-PoE features Etherlighting Ports that illuminate to indicate port location, speed/link, and native VLAN/network. When paired with UniFi Etherlighting Patch Cables, the brightness is optimised for easier port identification
USW-Pro-Max-24-PoE features 8 x 2.5 GbE PoE++ ports and 16 x GbE ports, which include 8 x PoE+ and 8 x PoE++ ports, allowing for versatile power delivery to connected devices. The switch is also equipped with 2 10G SFP+ ports for high-speed uplinks and data-intensive operations.
The USW-Pro-Max-24-PoE switch offers a total non-blocking throughput of 56 Gbps and a switching capacity of 112 Gbps.
Specifications
Mechanical
Weight &Dimensions
442.4 x 325 x 43.7 mm (17.4 x 12.8 x 1.7″)
Weight Without mounting brackets: 5.1 kg (11.3 lb)
With mounting brackets: 5.2 kg (11.5 lb)
Enclosure material
SGCC steel
Hardware
Management interface
Ethernet In-Band
Networking interface
(16) GbE RJ45 ports
(8) 1/2.5 GbE RJ45 ports
(2) 10G SFP+ ports
PoE interface
(8) PoE/PoE+ (Pins 1, 2+; 3, 6-)
(16) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 😎
Total non-blocking throughput
56 Gbps
Switching capacity
112 Gbps
Power method
Universal input, 100—240V AC, 50/60 Hz
USP RPS DC input
Power supply
AC/DC, internal, 450W
Supported voltage range
100—240V AC
Max. power consumption
50W (Excluding PoE output)
Total available PoE
400W
Max. PoE wattage per port by PSE
PoE: 15.4W
PoE+: 30W
PoE++: 60W
Voltage range PoE mode
PoE: 44—57V
PoE+: 50—57V
LCM display
(1) 1.3″ touchscreen
Button
Factory reset
Operating temperature
-5 to 40° C (23 to 104° F)
Operating humidity
10 to 90% noncondensing
Certifications
CE, FCC, IC
Etherlighting
Ethernet
Locating
Speed/link
Native VLAN/network
SFP+
Locating
Speed/link
Native VLAN/network
LEDs
System
Status
RPSStatus
Box Contents
1 x USW-Pro-Max-24-PoE Switch
4 x rubber feet
1 x UK power cable
1 x Pair rackmount ears
1 x Rackmount accessories
