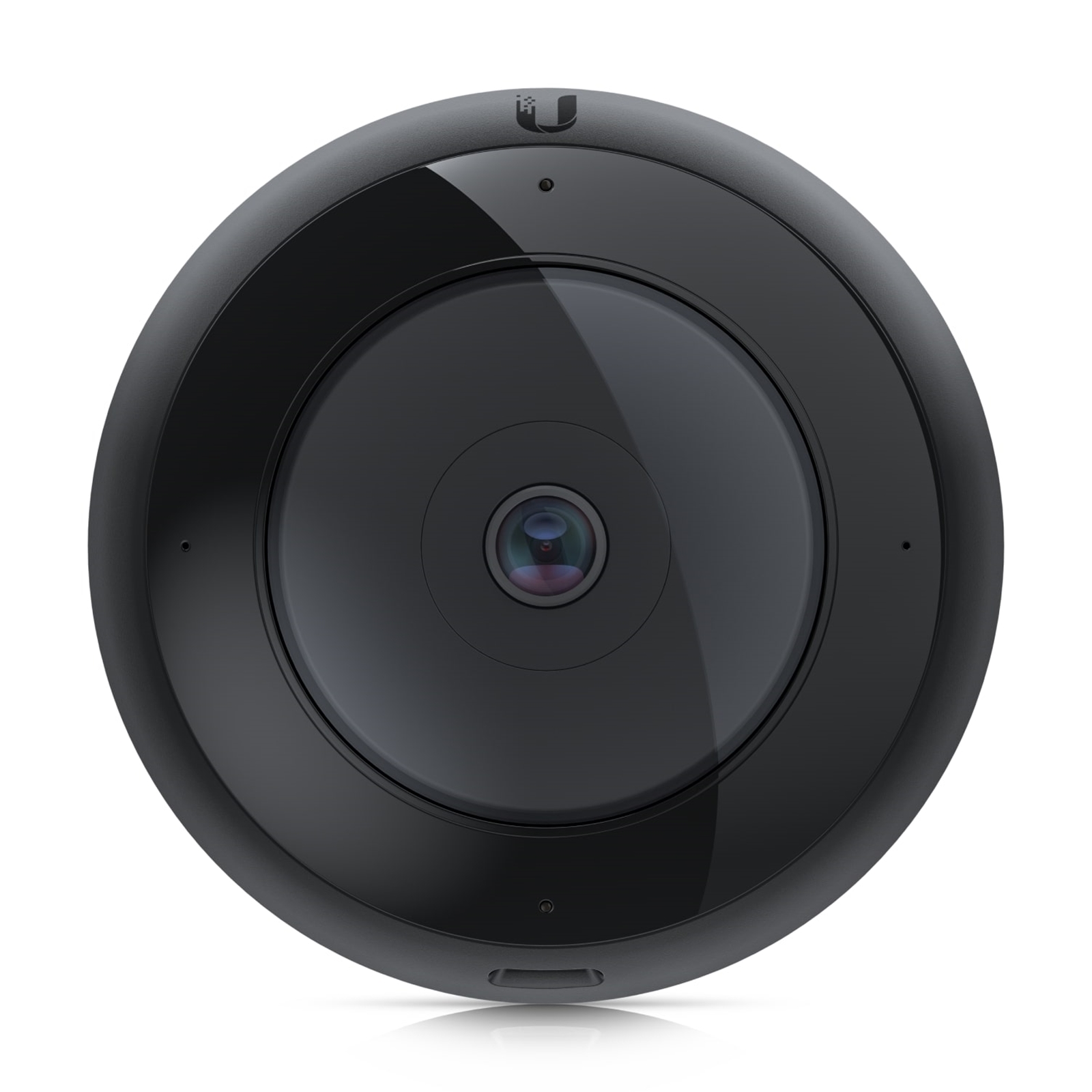

Ubiquiti UVC-AI-360 UniFi Protect PTZ Camera AI 360
Ubiquiti UVC-AI-360 Camera is a PTZ (pan-tilt-zoom) camera that provides overhead, panoramic surveillance of indoor and outdoor spaces. The UVC-AI-360 streams crystal clear 1920 x 1920 video, running at a smooth 30 frames per second, it also has built-in IR LEDs to ensure every frame is captured flawlessly, no matter what time of day or night.
UVC-AI-360 Camera features an ultra-wide 360° fisheye lens and a 5MP CMOS sensor, the AI 360 can quickly detect fine details within its expansive coverage area and capture them with extreme clarity. The AI 360 is housed in weather and tamper-resistant material, making it an ideal choice for outdoor areas that might be prone to harsh weather or risk of vandalism; ideal for shopping centres, parking lots, airports, train stations and other high traffic areas.
The UVC AI 360 is a sophisticated, feature-rich camera, but it’s also designed to be incredibly easy to set up and incorporate into existing UniFi Protect deployments. It can be adopted in minutes and managed with either the UniFi Protect web application or mobile app.
Key Features
Captures 1920 x 1920, 30 FPS video
5 MP CMOS sensor
Ultra-wide, 360° fisheye lens
IPX4-rated, weatherproof housing
IK08-rated tamper resistance
Built-in IR LEDs for clear nighttime surveillance
Powered by PoE
Specification
Mechanical
Dimensions
Ø147 x 49 mm (Ø5.77 x 1.94″)
Weight
Without mount: 655 g (1.44 lb)
With outdoor accessory: 685 g (1.51 lb)
Enclosure materials
Aluminum alloy, polycarbonate, hard-coated dome
Mounting materials
Polycarbonate, stainless steel
Weatherproofing
IPX4
Resistance
IK08
Optics
Sensor
5 MP CMOS sensor
Lens
Fisheye lens
View angle
360°
Night mode,/b>
Built-in IR LED illumination and IR cut filter
Video
Video compression
H.264, MJPG
Resolution
1920 x 1920 (1:1)
Maximum frame rate
30 FPS
Image settings
Colour, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, masking, text overlay
System
Processor specs
ARM quad-core Cortex -A53
Memory information
2 GB LPDDR4
Flash memory support
8GB eMMC
Management interface
UniFi Protect
Networking interface
GbE RJ45 port
Power method
PoE
Power supply
48VDC, 0.18A PoE
Max. power consumption
8.64W
Supported voltage range
37 to 57VDC
Link/activity LED
Yes
Button
Factory reset
Operating temperature
-20 to 40° C (-4 to 104° F)
Operating humidity
10 to 90% noncondensing
Certifications
FCC, IC, CE
Audio
MicrophoneYes (can be disabled in software)
Speaker
Yes
Software
UniFi OS application
UniFi Protect
Mobile apps
UniFi Protect iOS and Android
Box Contents
1x UVC-AI-360
1x Indoor Lens Cover
1x Outdoor Lens Cover
1x Lens cover Remover
1x Wall Mount Kit (Screws Included)
