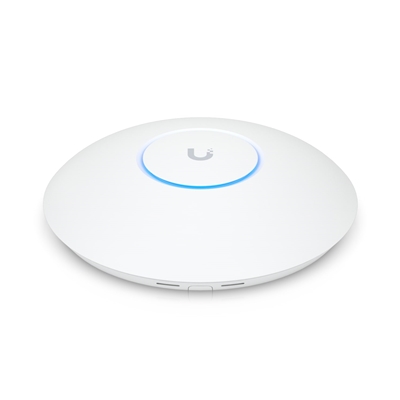

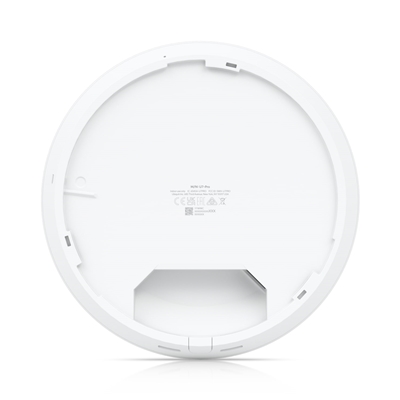

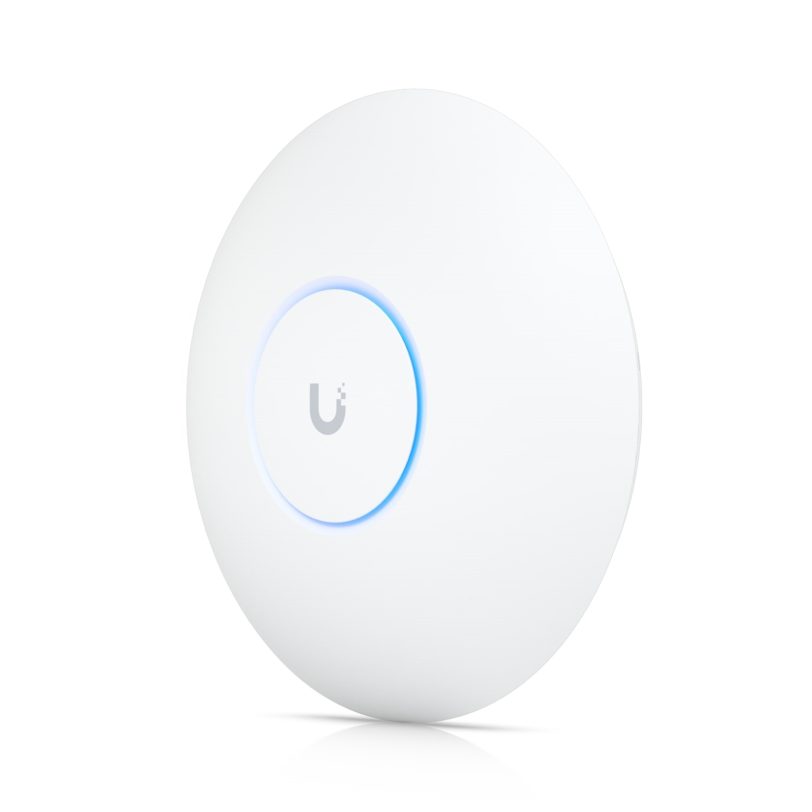

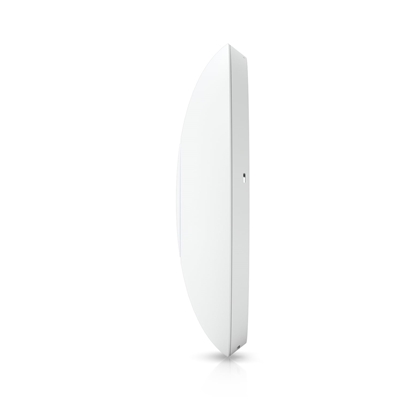

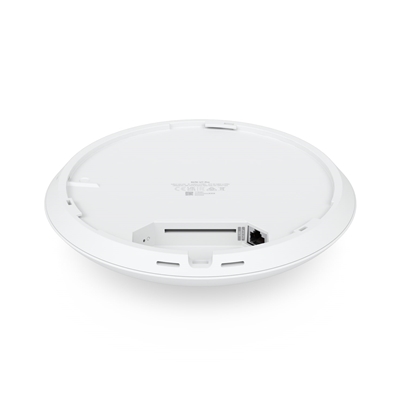

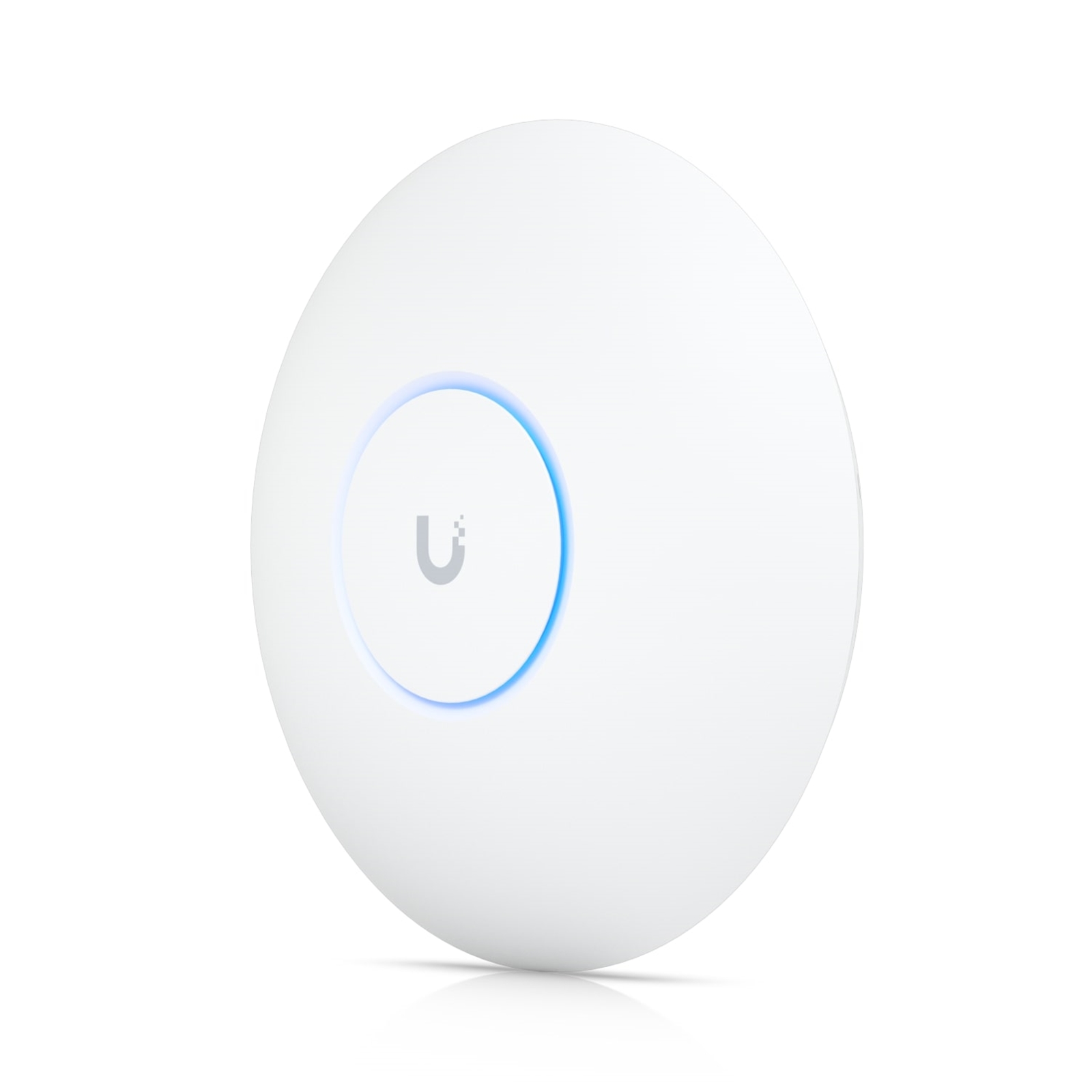

Ubiquiti UniFi U7 Pro WiFi 7 Access Point
The UniFi U7-Pro is a Ceiling-mount WiFi 7 AP with 6 GHz support, 2.5 GbE uplink, and 9.3 Gbps over-the-air speed.
Key Features
WiFi 7 with 6 GHz support
140 m² (1,500 ft²) coverage
300+ connected devices
Powered using PoE+
2.5 GbE uplink
The Ubiquiti UniFi U7 Pro WiFi 7 Access Point is a ceiling-mounted device designed for large-scale, demanding environments. It supports WiFi 7 with a tri-radio system, including 6 GHz for reduced interference.
The UniFi U7 Pro offers 6 spatial streams, which handle over 300 connected devices. The U7 Pro features a 2.5 GbE uplink and offers advanced throughput rates and antenna gains across different frequency bands. It’s built with robust hardware and software, ensuring high performance and security standards.
Specifications
Mechanical
Weight & Dimensions
206 x 46 mm (8.1 x 1.8″)
Weight680 g (1.5 lb)
Enclosure materials
Polycarbonate, metal
Mount material
Mounting bracket: stainless steel (SUS304)
Backing plate: galvanized steel (SGCC)
Hardware
Networking interface
(1) 1/2.5 GbE RJ45 port
Management interface
thernet
Power method
PoE+
Power supply
UniFi PoE switch
Supported voltage range
44—57V DC
Max. power consumption
21W
Max. TX power
2.4 GHz – 22 dBm
5 GHz – 26 dBm
6 GHz – 23 dBm
MIMO
2.4 GHz – 2 x 2
5 GHz – 2 x 2
6 GHz – 2 x 2
Throughput rate
2.4 GHz – 688 Mbps
5 GHz – 2882 Mbps
6 GHz – 5765 Mbps
Antenna gain
2.4 GHz – 4 dBi
5 GHz – 6 Dbi
6 GHz – 5.8 dBi
LEDs
White/blue
Button
Factory reset
Mounting
Wall/ceiling (Included)
Operating temperature
-30 to 60° C (-22 to 140° F)
Operating humidity
5 to 95% noncondensing
Certifications
CE, FCC, IC
Software
WiFi standards
802.11a/b/g/n/ac/ax/be
Wireless security
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
BSSID
8 per radio
VLAN
802.1Q
Advanced QoS
Per-user rate limiting
Guest traffic isolation
Supported
Concurrent clients
300+
Supported Data Rates
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
1, 2, 5.5, 11 Mbps
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n
6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6)
7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160)
802.11be (WiFi 7)
7.3 Mbps to 5.7 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240/320)
Application Requirements
UniFi Network
Version 8.0.7 and later
UniFi OS
Version 3.2 and later
