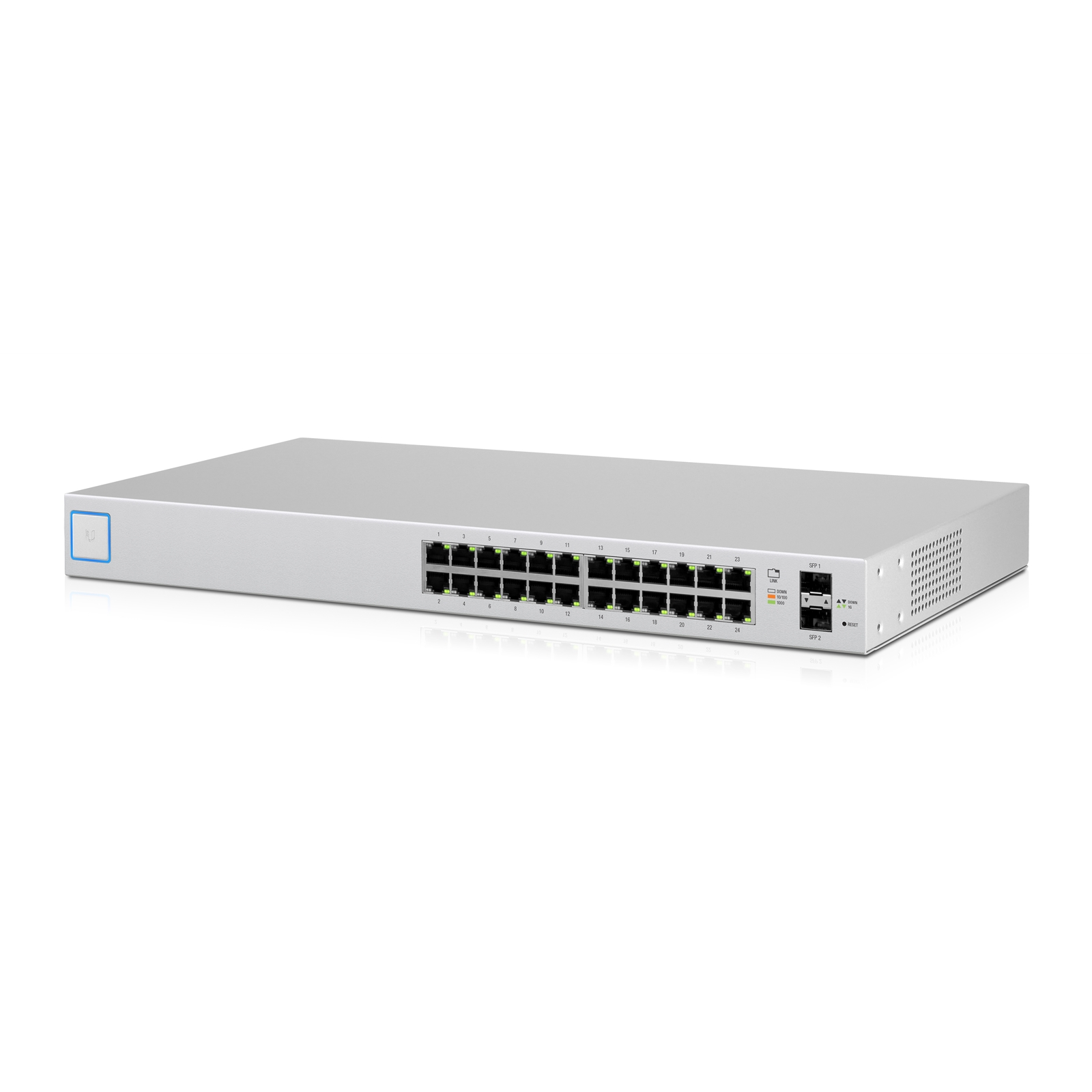

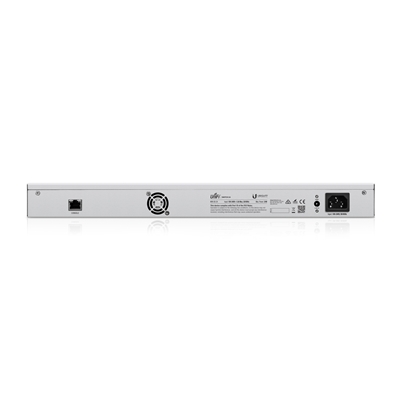

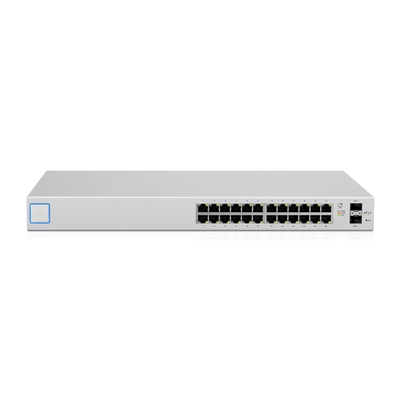

Managed Gigabit Switches with SFP
Available with 24 or 48 RJ45 Gigabit ports, the UniFi Switch is a fully managed Gigabit switch, delivering robust performance and intelligent switching for your growing networks.
Powerful Enterprise Switch Models
The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. For its total, non-blocking throughput, the 24-port model supports up to 26 Gbps, while the 48-port model supports up to 70 Gbps.
Multi-Site Management
A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.
Optical Fiber Backhaul
Two SFP ports support uplinks of up to 1 Gbps.
Non-Blocking Throughput
For its total, non-blocking throughput, the 24-port model supports up to 26 Gbps, while the 48-port model supports up to 70 Gbps.
Switching Capacity
The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

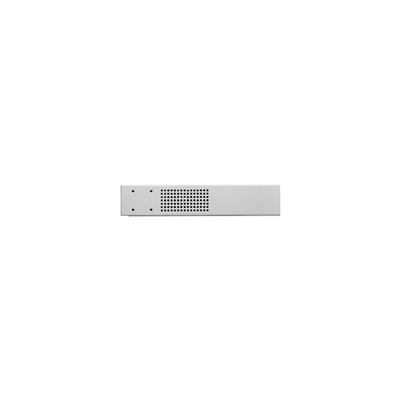

Versatile Mounting Options
The UniFi Switch can be placed on a desktop or mounted on a wall or in a rack.
Seamless Integration
The UniFi Switch integrates seamlessly into the UniFi Software-Defined Networking (SDN) platform to create a highly scalable, end-to-end system of network devices across multiple locations all controlled from a single interface.
Specifications
Model: US-24
Total Non-Blocking Throughput: 26 Gbps
Gigabit RJ45 Ports: 24
SFP+ Ports: N/A
SFP Ports: 2
Switching Capacity: 52 Gbps
