Powerful Hardware and Software
UniFi Switches offer a variety of features, including 10G SFP+ ports, PoE+ or PoE++ support, and Layer 3 switching capabilities.
Redundant Power System
UniFi SmartPower RPS, USP-RPS, is our PSU failover system.
Power Supply Failure
In the event of a UniFi switch power supply failure, the USP-RPS automatically supplies redundant power to the failed device.
UniFi SmartPower
One UniFi SmartPower device can support up to 6 devices until the failed device is replaced.
Touchscreen Display
The 1.3″ touchscreen display allows easy monitoring and quick troubleshooting.
Synchronized LCM Displays
Touch one to wake up all the screens and view a rich set of information.
System Information
Errors
Warnings
Port Statistics
PoE Power
Throughput
And a lot more..

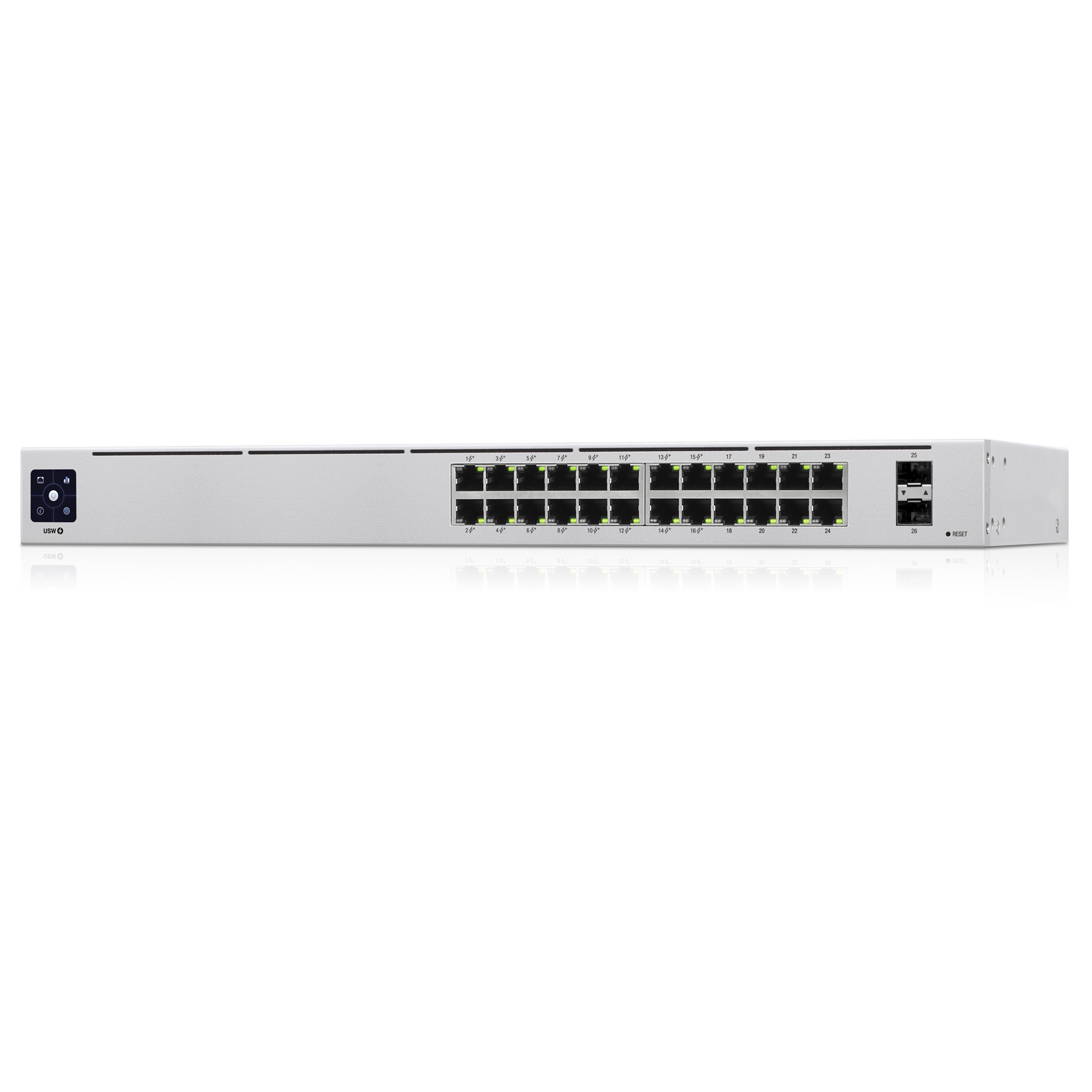

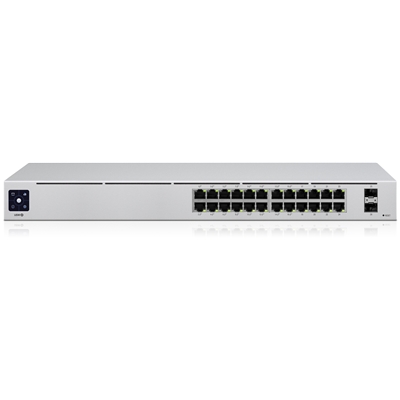

Specifications
Power Budget
95W PoE
RJ45 Ports
(24) 10/100/1000 RJ45 Ports
PoE+ Ports
(1-16) IEEE 802.3af/at
PoE++
No
SFP
(2) 1G SFP Ethernet Ports
SFP+
No
LCM
Yes
USP-RPS Power Redundancy
No
Dimensions
442.4 x 200 x 43.7 mm
