Flexible, 8-port 2.5 GbE PoE++ switch with a 10 GbE RJ45/SFP+ combination uplink port that can be powered with PoE+++ or an AC power adapter.
Note. Actual PoE availability may vary based on input cable length and quality.
AC power adapter sold separately.
Dimensions
212.9 x 99.4 x 33.5 mm
(8.4 x 3.9 x 1.3″)

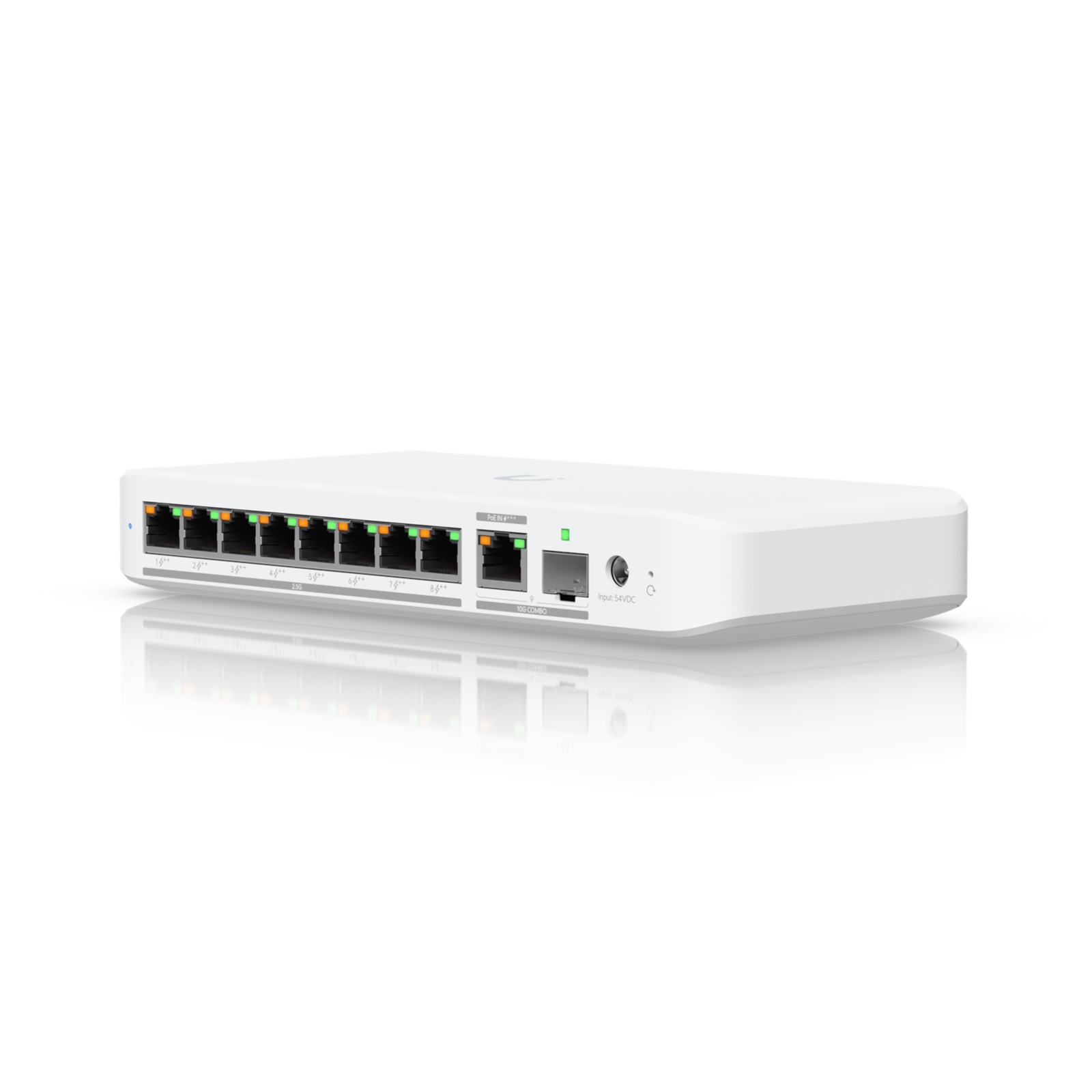

Port Layout
2.5 GbE RJ45
8 (All PoE++)
10 GbE RJ45
1 (PoE+++)
10G SFP+
1
Max. PoE Output
Up to PoE++
Total PoE Availability
PoE+++ input: 76W
PoE++ input: 46W
PoE+ input: 16W
210W AC adapter input: 196W

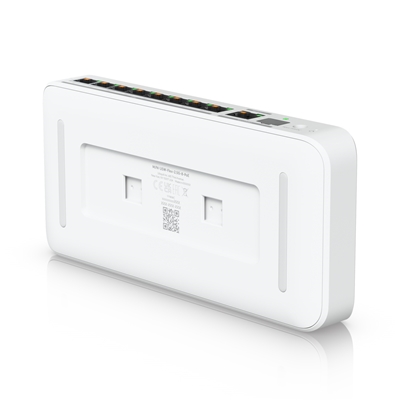

Form Factor
Compact Desktop, wall, DIN, magnetic
Switching Capacity
60 Gbps
Total Non-Blocking Throughput
30 Gbps
Forwarding Rate
45 Mpps
Supported VLANs
256
MAC Address Table Size
4000
STP & RSTP
Yes
Egress Rate Limit
Yes
Flow Control
Yes
Storm Control
Yes
Multicast & Broadcast Rate Limiting
Yes
Port Isolation
Yes
Port Mirroring
Yes
Jumbo Frames
Yes
Loop Protection
Yes
PoE Ports
PoE++
8
Max. PoE Wattage per Port by PSE
PoE
15.4W
PoE+
32W
PoE++
64W
Max. Power Consumption
14W (Excluding PoE output) with PoE input
17W (Excluding PoE output) with AC adapter input
210W (Including PoE Output)
Power Method
(1) AC/DC adapter (Excluded)
(1) PoE+++
Power Input Method
DC Input
PoE
Supported Voltage Range
50—57V DC/PoE
Management
Ethernet
Weight
567 g (20 oz)
Enclosure Material
Polycarbonate
Mount Material
Polycarbonate
Certifications
CE, FCC, IC
