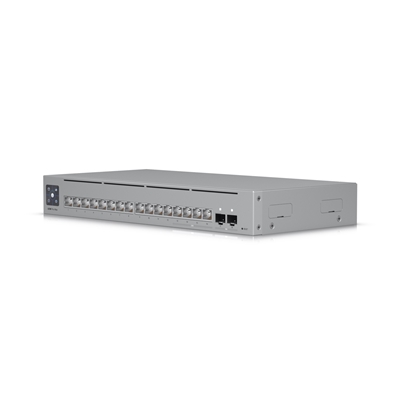

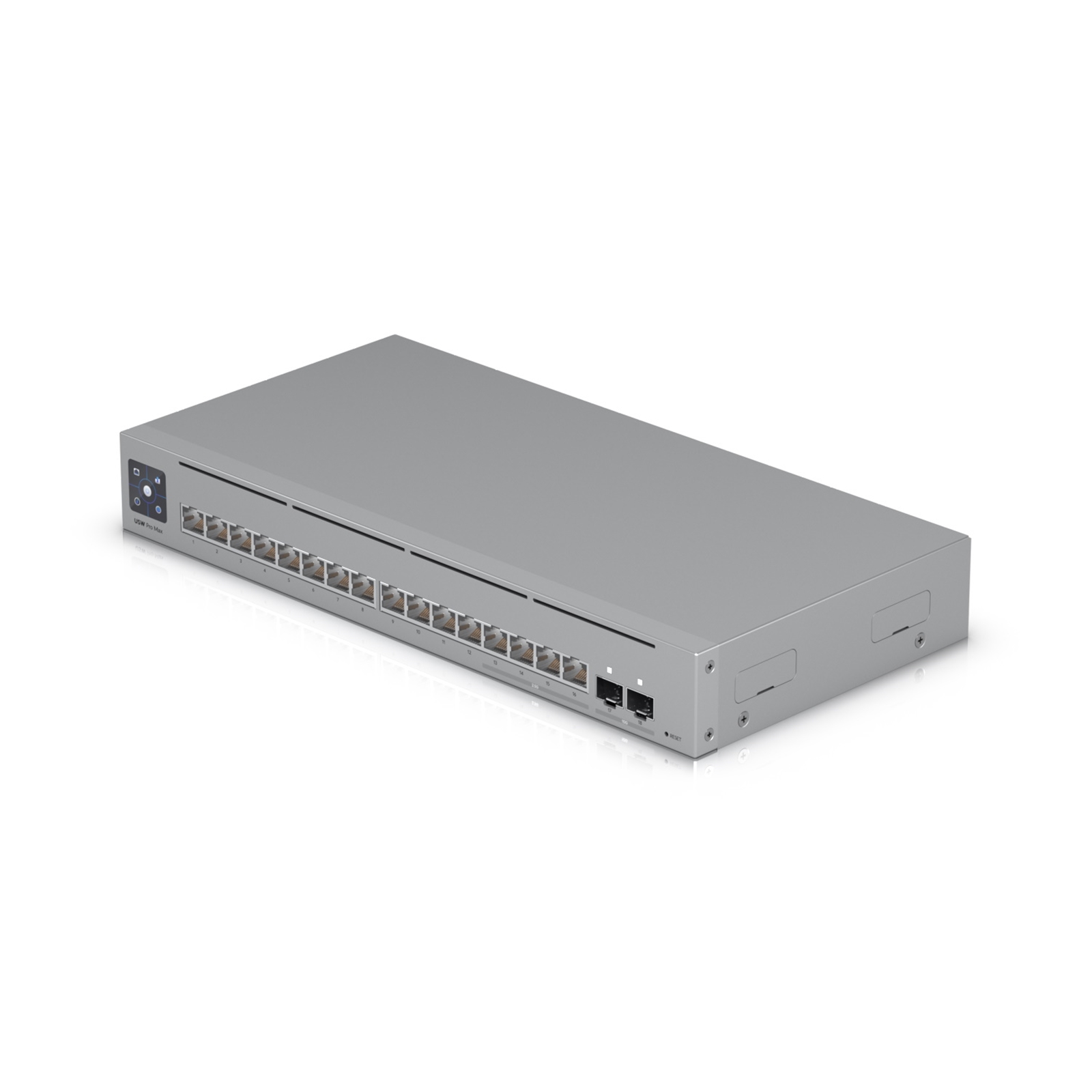

A 16-port, Layer 3 Etherlighting switch 2.5 GbE and versatile mounting options.

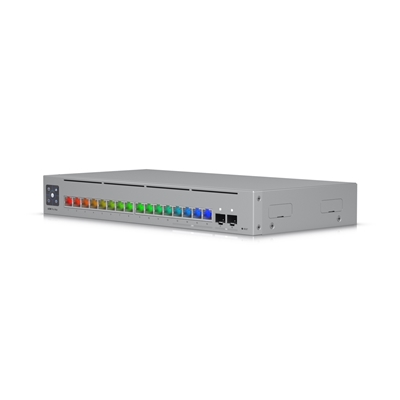

Etherlighting ports that illuminate to indicate port location, speed/link, and native VLAN/network
(4) 2.5 GbE RJ45 ports
(12) GbE RJ45 ports
(2) 10G SFP+ ports
Versatile desktop, wall, and rack mounting (optional rack mount kit required)
Silent, fanless cooling system
Dimensions
325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7″)
Weight
1.95 kg (4.3 lb)
Enclosure Material
SGCC steel
Management Interface
Ethernet In-Band
Networking Interface
(12) GbE RJ45 ports
(4) 1/2.5 GbE RJ45 ports
(2) 10G SFP+ ports
Total Non-Blocking Throughput
42 Gbps
Switching Capacity
84 Gbps
Forwarding Rate
62.496 Mpps
Power Method
Type-C adapter
Power Supply
5V, 25W
Max Power Consumption
25W
LCM Display
(1) 1.3″ touchscreen
Button
Factory Reset
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
Certifications
CE, FCC, IC
Layer 2 Features
IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs
Layer 3 Features
DHCP for locally-managed networks
DHCP relay
Inter-VLAN routing between networks on same switch
Static routing between local networks
Network isolation with ACLs
